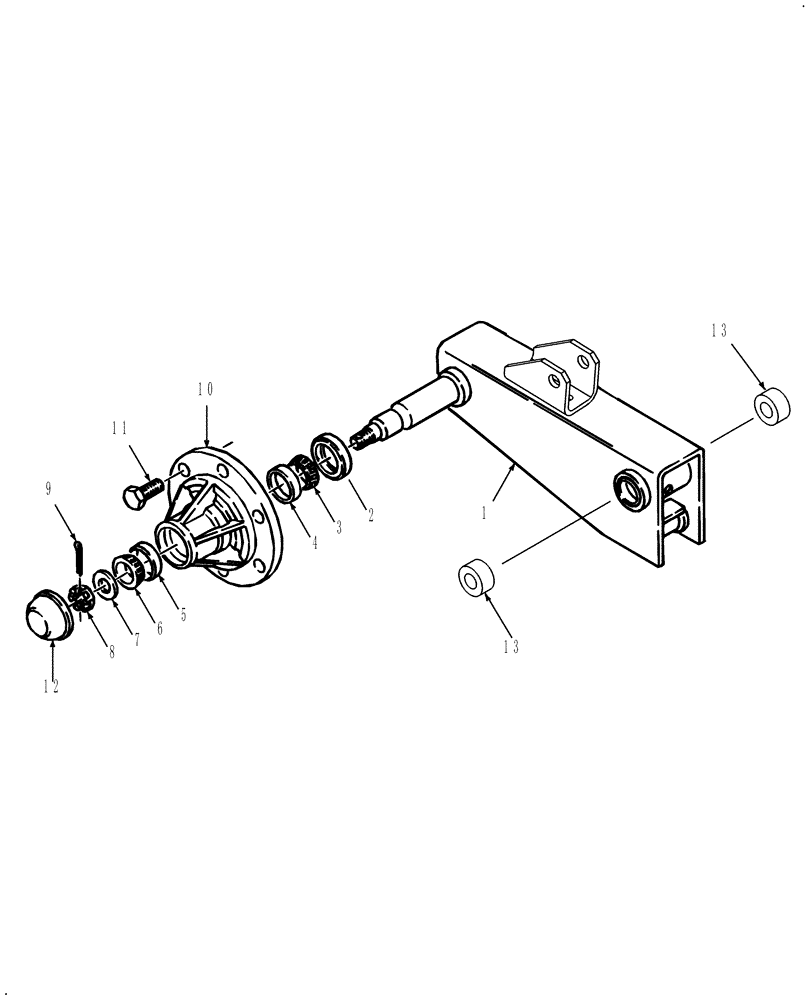

Запчасти Case IH DC102 (11.01) - SPINDLE, RH & LH (11) - WHEELS

1

87616846

ARM ASSY.

Left Hand, Includes: Ref. 8 & 13

1шт.

1

87616929

ARM ASSY.

Right Hand, Includes: Ref. 8 & 13

1шт.

2

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

2шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

2шт.

5

574810

BEARING CUP,45.26mm OD x 12.06mm W

2шт.

6

574809

BEARING CONE,21.98mm ID x 16.64mm W

2шт.

7

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

3/4"

2шт.

8

88886

SLOTTED NUT,3/4"-16

2шт.

9

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

10

86631051

HUB

2шт.

11

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

12

249130

HUB CAP

2шт.

13

788926

DRIVE BUSHING,50.75mm ID x 54mm OD x 47.8mm L

4шт.

14

87298555

KIT

Contains 2 - 9 & 12

2шт.

Wheel Bearing Kit / Ship Direct Option

1шт.
