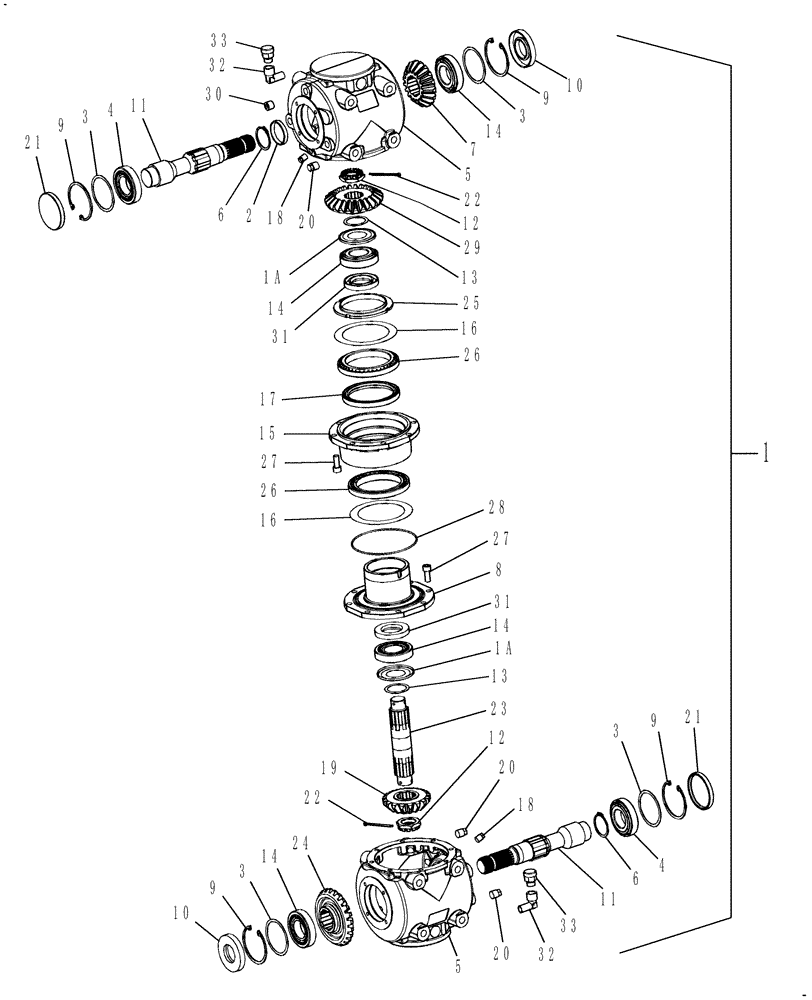

Запчасти Case IH DC102 (03.04) - GEARBOX, 540, SWIVEL TONGUE (03) - MAIN GEARBOX

1

87610149

GEARBOX

For Swivel Tongue Only

1шт.

1a

84289001

SHIM

Protective Washer

2шт.

2

84289000

SPACER

1шт.

3

86539214

SHIM

Shim

4шт.

4

87055661

TAPERED BEARING

2шт.

5

84288999

HOUSING

2шт.

6

84288997

SNAP RING

Internal, Retaining Ring 46

2шт.

7

84288996

GEAR

Pinion, 17 Teeth

1шт.

8

84288995

HOUSING

Extension Neck

1шт.

9

300633

SNAP RING,M80, Internal

4шт.

10

84227691

OIL SEAL

40 x 80 x 12

2шт.

11

84227943

SHAFT

1-3/8", 21 Teeth

2шт.

12

84288993

BEARING LOCK NUT

30mm x 1.5

2шт.

13

86539215

KIT

Shim

2шт.

14

84227999

TAPERED BEARING

4шт.

15

86592262

HOUSING

Extension, Outer Neck

1шт.

16

86559221

WASHER

Protective

2шт.

17

86547751

OIL SEAL

Oil, 95 x 120 x 12

1шт.

18

84288992

PLUG

PLUG .25 GAS

2шт.

19

84288991

PINION

17 Teeth

1шт.

20

86557412

PLUG,3/8" - 19 NPT

3шт.

21

86539148

CAP

80 x 10

2шт.

22

84289002

HAIR PIN COTTER

2шт.

23

84288740

SHAFT

1шт.

24

84283242

GEAR

Crown Wheel, 23 Teeth, M5.4

1шт.

25

84283244

LOCK NUT

M95 x 2

1шт.

26

86551264

TAPERED BEARING

2шт.

27

84283243

BOLT

M10 x 25

16шт.

28

86547747

O-RING

62mm

1шт.

29

84288739

GEAR

Crown Wheel, 23 Teeth, M5.4

1шт.

30

86539149

PLUG,3/8" BSPP

3/8" Gas

1шт.

31

86547750

OIL SEAL

Oil, 40 x 72 x 10

2шт.

32

86539184

ELBOW

3/8" Gas

2шт.

Not Shipped With Gearbox

1шт.

33

86539157

BREATHER,3/8" Gas

Oil Filler Plug

2шт.

Not Shipped With Gearbox

1шт.
