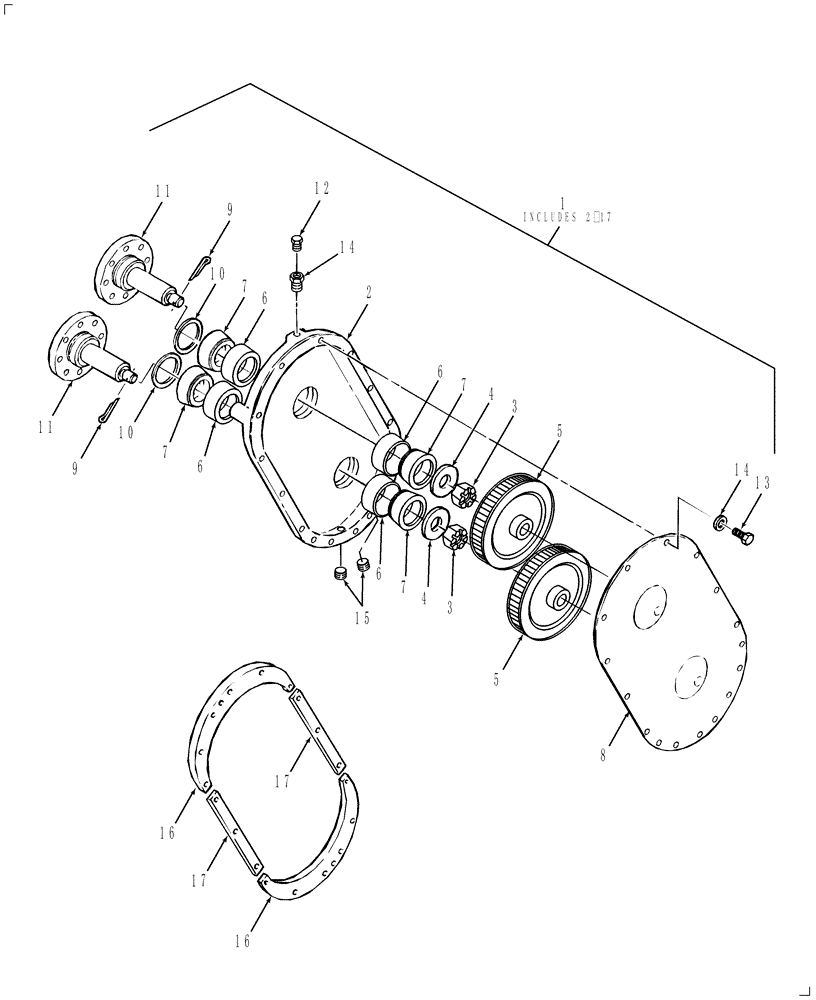

Запчасти Case IH DC102 (03.03) - GEARBOX, CONDITIONER (03) - MAIN GEARBOX

1

86602361

GEARBOX

Includes: Ref. 2 - 17

1шт.

1

86602361R

REMAN-TRANSMISSION

Reman Gearbox

1шт.

1

86602361C

CORE-TRANSMISSION

Return Number

1шт.

1

87567908

GEARBOX

Includes: Ref. 2 - 17

1шт.

1

87567908R

REMAN-GEARBOX

DC102, Reman Gearbox

1шт.

1

87567908C

CORE-GEARBOX

Return Number

1шт.

2

9616628

HOUSING

Housing

1шт.

3

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

2шт.

4

56867

WASHER

2шт.

5

87051763

GEAR

Spur, 63T

2шт.

6

175508

BEARING CUP,59.16mm OD x 11.94mm W

4шт.

7

175507

BEARING CONE,35 mm ID x 16.764 mm

4шт.

8

9847741

COVER

1шт.

9

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

10

694956

SEAL

2шт.

11

9847669

SHAFT

2шт.

12

572820

BREATHER

1шт.

13

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

14

87520047

REDUCER FITTING

Hex

1шт.

15

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

3шт.

16

86524355

STRIP-GASKET

2шт.

17

86524354

STRIP-GASKET

2шт.
