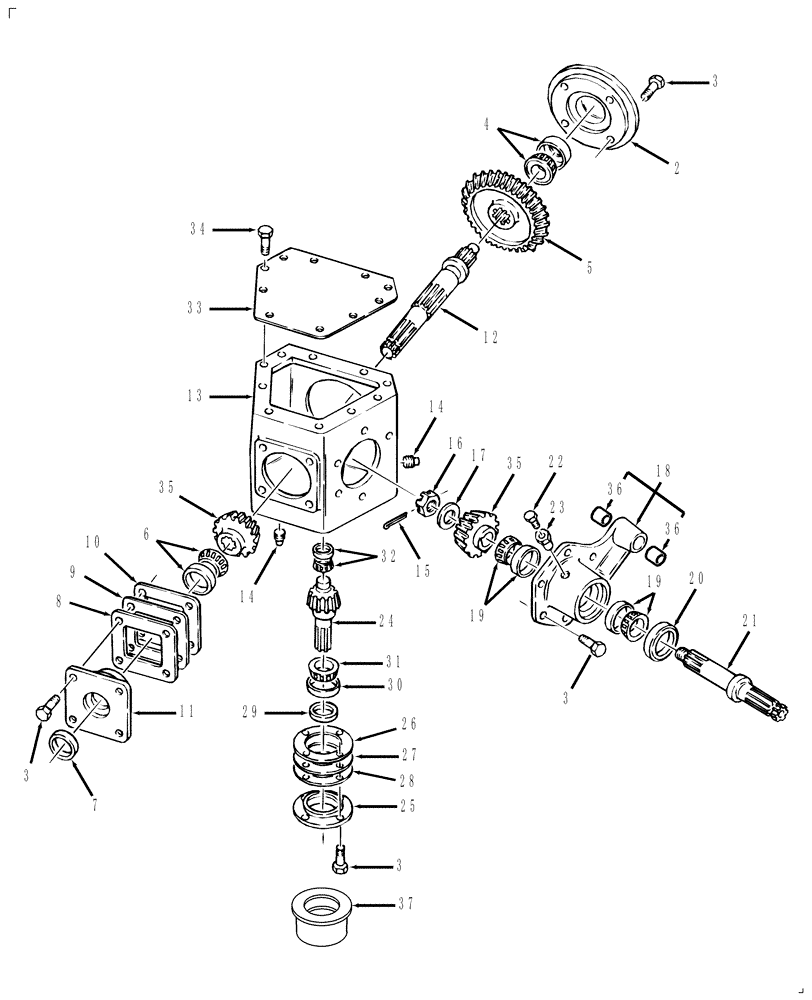

Запчасти Case IH DC102 (03.02) - GEARBOX, BEVEL (03) - MAIN GEARBOX

1

87545091

FINAL DRIVE

FINAL REDUCTION GEARBOX Bevel, Includes: Ref. 2 - 37

1шт.

1

87545091R

REMAN-GEARBOX

Reman Gearbox, DC102 & DC102F

1шт.

1

87545091C

CORE-GEARBOX

Return Number

1шт.

2

9860200

CAP

1шт.

3

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

18шт.

4

86512014

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.51mm W

1шт.

5

87054842

GEAR SET

1шт.

6

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

1шт.

7

634036

OIL SEAL

1шт.

8

86501593

SHIM

.002"

1шт.

9

86501594

SHIM

.010"

1шт.

10

86501595

SHIM

.003"

1шт.

11

9860202

CAP COVER

1шт.

12

87545107

SHAFT

Component of 87545091

1шт.

12

84264394

SHAFT

Component of 87545091, but after Oct 2, 2009, has longer splines

1шт.

13

87057324

GEARBOX

Housing

1шт.

14

84296

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

2шт.

15

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

16

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

17

56867

WASHER

3/4"

1шт.

18

9860198

BEARING HOUSING

1шт.

19

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

20

189602

SEAL,53.98mm ID x 76.38mm OD x 9.53mm Thk

1шт.

21

86501538

SHAFT

1шт.

22

572820

BREATHER

1шт.

23

87520047

REDUCER FITTING

Hex, Serial Range: 1/2"-1/8"

1шт.

24

87054842

GEAR SET

18T

1шт.

25

86639720

CAP

1шт.

26

692306

SHIM,.002" Thk

1шт.

27

692307

SHIM,.003" Thk

1шт.

28

692308

SHIM,.010" Thk

1шт.

29

692326

SEAL,42mm ID x 60mm OD x 9mm Thk

1шт.

30

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

1шт.

31

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

32

86512016

BEARING ASSY,21.99mm ID x 45.24mm OD x 15.5mm W

1шт.

33

86501239

COVER

1шт.

34

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

35

87036680

GEAR SET

24T

1шт.

36

27767

BUSHING

2шт.

37

86577097

SHIELD

1шт.
