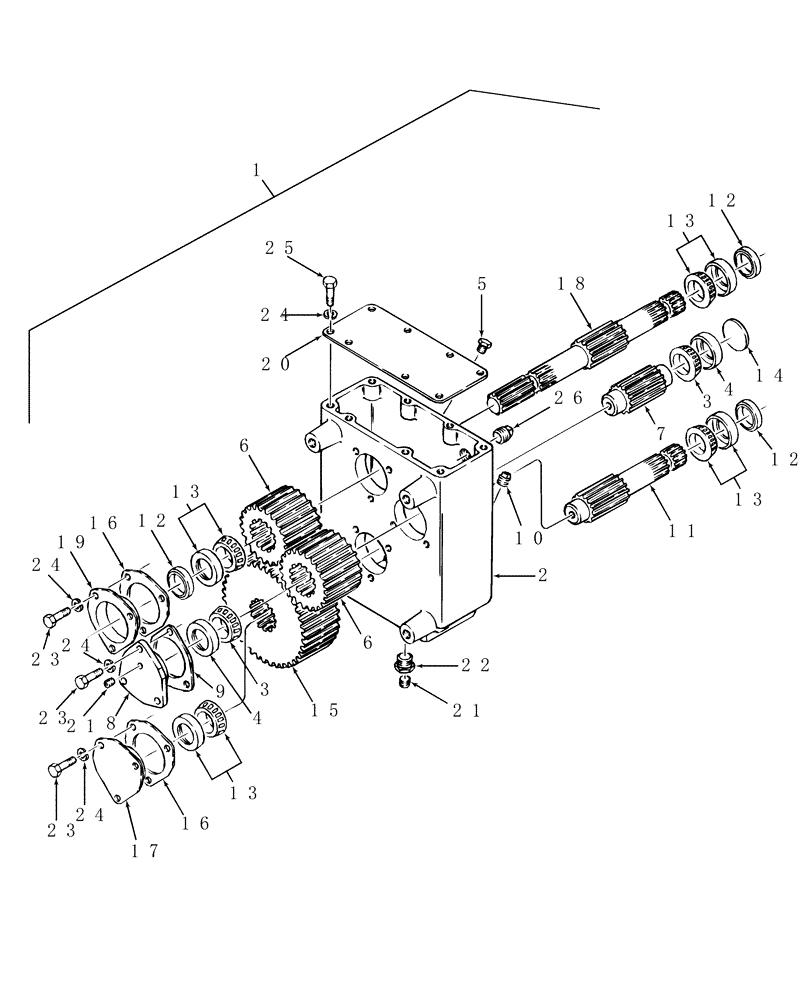

Запчасти Case IH DC102 (03.01) - GEARBOX, STEP UP (03) - MAIN GEARBOX

1

87567914

GEARBOX

Includes: Ref. 2 - 26

1шт.

1

87567914R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

87567914C

CORE-GEARBOX

Return No, GEARBOX

1шт.

2

86505652

CASTING

1шт.

3

86516471

BEARING CONE,34.92mm ID x 24.61mm W

Inner, 1-3/8" ID x 31/32" Wide

2шт.

4

86516462

BEARING CUP,73.03mm OD x 19.05mm W

2-7/8" OD

2шт.

5

572820

BREATHER

1шт.

6

87051761

GEAR

21T

2шт.

7

692538

IDLE SHAFT

1шт.

8

692535

BEARING ASSY

Bearing

1шт.

9

693049

SHIM,.005" Thk

1шт.

9

693050

SHIM,.007" Thk

1шт.

9

693051

SHIM,.020" Thk

1шт.

10

80815

PLUG,Sq Hd, 3/4"-14

1шт.

11

9803945

SHAFT

1шт.

12

634036

OIL SEAL

3шт.

13

86530145

TAPERED BEARING,34.92mm ID x 65.09mm OD x 21.08mm W

4шт.

14

9618005

PLUG,Exp, 2 11/16"

1шт.

15

87051762

GEAR

39T

1шт.

16

86515535

SHIM

.002"

1шт.

16

693046

SHIM,.005" Thk

1шт.

16

693047

SHIM,.007" Thk

1шт.

16

693048

SHIM,.020" Thk

1шт.

17

692533

BEARING ASSY

Bearing

1шт.

18

86505654

SHAFT

1шт.

19

692537

BEARING ASSY,2.001" ID x 2.562" OD x 0.75"

Bearing

1шт.

20

692544

COVER

1шт.

21

56513

PLUG,Hex Soc, 1/8" - 27 NPT

Pipe, Hex Square, 1/8"

2шт.

22

88873

BUSHING

Hex, Serial Range: 3/4"-1/8"

1шт.

23

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

9шт.

24

80681

LOCK WASHER,5/16"

17шт.

25

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

26

84296

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.
