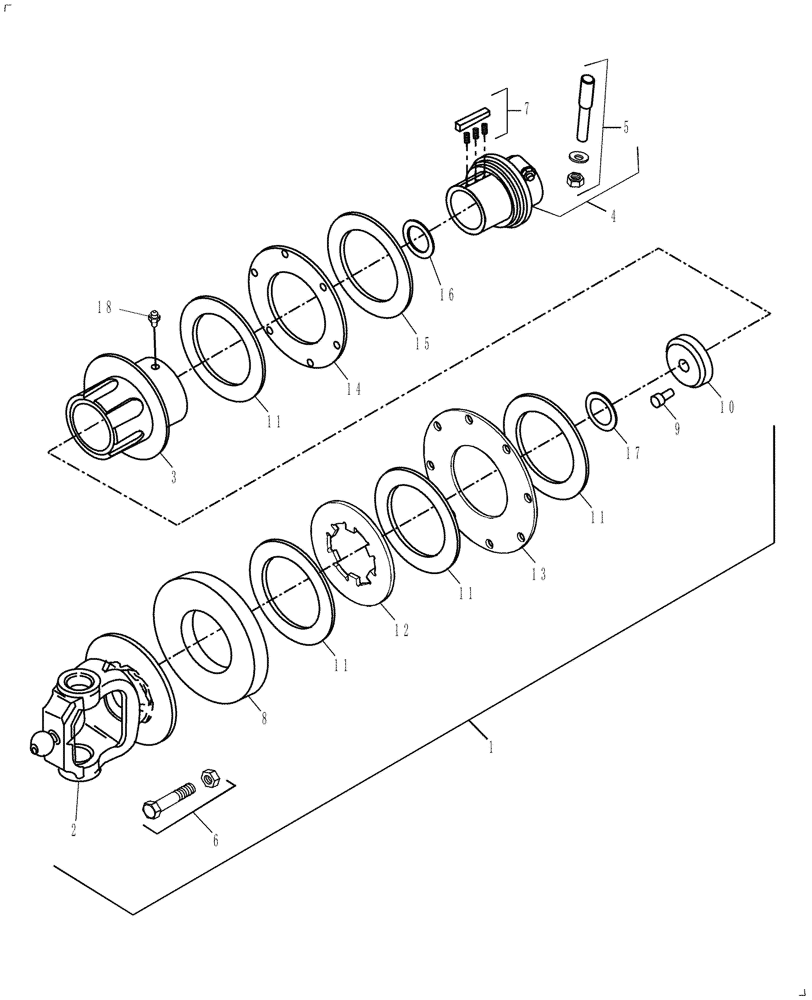

Запчасти Case IH DC102 (01.07) - CLUTCH, FRICTION OVERRIDING (01) - PTO DRIVE SHAFT

1

87565192

PTO CLUTCH

Includes: Ref. 2 Thru 17

1шт.

2

87565194

COUPLING FLANGE

1шт.

3

87565204

HUB

Clutch Outer

1шт.

4

87565208

HUB

Clutch, TPIN, Includes: Ref. 5

1шт.

5

86625865

KIT

Kit

1шт.

6

87565193

BOLT AND NUT

Kit, Contains 8

1шт.

7

87565209

REPAIR KIT

Incl 1 Pawl and 3 Springs

4шт.

8

87565195

SPACER

1шт.

9

87565200

SCREW,M8 x 1.25 x 1.25mm, Cl 12.9

3шт.

10

87565201

CAP

1шт.

11

87565196

DISC

Friction

4шт.

12

87565197

DRIVE PLATE,89mm ID x 142mm OD x 6mm Thk

1шт.

13

87565198

PLATE

Inner

1шт.

14

87565205

PLATE

Inner

1шт.

15

87565206

BELLEVILLE SPRING

1шт.

16

87565207

RING

Cap

1шт.

17

87565199

PLUG

1шт.
