Запчасти Case IH DC102 (01.05[02]) - STATIONARY PTO DRIVE SHAFT FOR SWIVEL TONGUE (01) - PTO DRIVE SHAFT

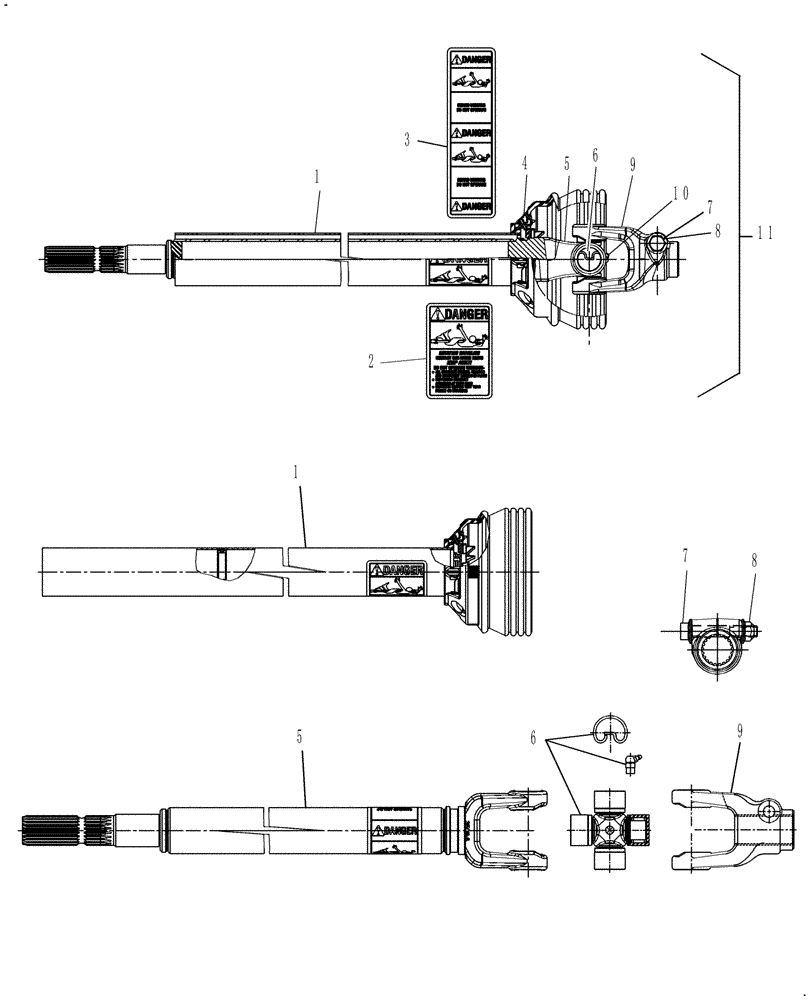

Схема запчастей Case IH DC102 - (01.05[02]) - STATIONARY PTO DRIVE SHAFT FOR SWIVEL TONGUE (01) - PTO DRIVE SHAFT
1
7
3
9
9
5
10
11
6
7
4
8
6
5
1
2
8

Артикул

Название

Примечание

Количество

1

84290536

GUARD

1шт.

2

849471

DANGER DECAL

Rotating Driveline

1шт.

3

849472

DANGER DECAL

Shield Missing, Do Not Operate

1шт.

3

9801256

DANGER DECAL

Shield Missing, Do Not Operate, Spanish

1шт.

3

849483

DANGER DECAL

Shield Missing, Do Not Operate, French

1шт.

4

87042238

REPAIR KIT

Nylon

1шт.

5

84290538

YOKE

And Shaft Assembly

1шт.

6

84290539

CROSS

1шт.

7

84246779

BOLT

1шт.

8

87025806

LOCK NUT

1шт.

9

87042245

YOKE

1 3/8-21

1шт.

10

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

87474586

DRIVE SHAFT

1 3/8-21 Spline, 52.37" Long, Includes Ref. 1 thru 10

1шт.

Выбрано товаров: 13
