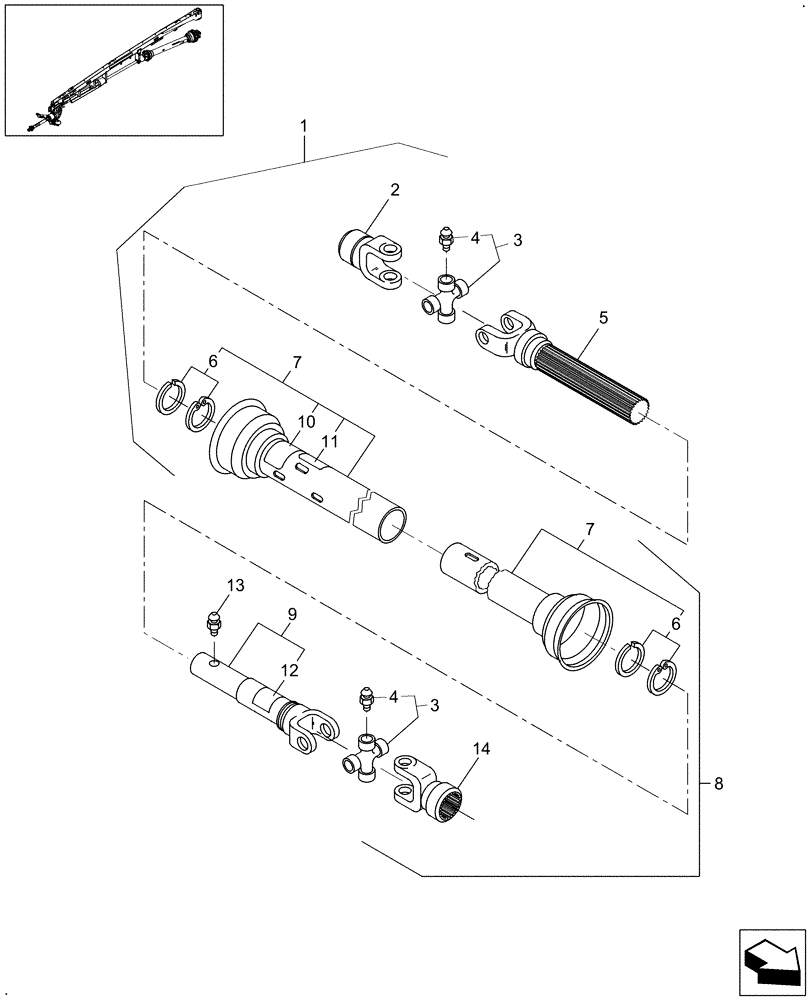

Запчасти Case IH DC102 (01.04[02]) - PRIMARY PTO COMPONENTS FOR 2-PT HITCH FOR SWIVEL TONGUE (01) - PTO DRIVE SHAFT

1

84283239

PTO

Front Half, Includes: Ref. 2 thru 7 and ref. 10

1шт.

2

86560323

YOKE

1 3/8-6 Spline

1шт.

2a

86534533

REPAIR KIT

Auto-Lok

1шт.

3

86520896

BEARING ASSY

Cross and Bearing Kit

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

86560319

YOKE

& Shaft, 19.44" Long

1шт.

6

87050379

REPAIR KIT

Nylon Bearing, Services Ref. 7 Inner and Outer Shields

2шт.

7

87345115

GUARD

Set, Plastic, Includes: Inner & Outer Shields

1шт.

7

84288728

GUARD

Set, Used With Longer Rear Half Includes Inner and Outer Shields

1шт.

8

87345104

REAR PTO ASSY

17.3" Long, Includes: Ref. 3, 4, 7, 9, 13 and 14

1шт.

8

84121831

REAR PTO ASSY

22.3" Long, Includes Ref. 3, 4, 7, 9, 13 and 14

1шт.

For Use With Quick Hitch on Tractor

1шт.

Not Included with Kit 84268163

1шт.

9

86560322

YOKE

Tube & Sleeve

1шт.

9

84293157

YOKE

Tube & Sleeve, Used With 84121831

1шт.

10

849471

DANGER DECAL

Rotating Driveline, English

1шт.

10

9801260

DANGER DECAL

Rotating Driveline, Spanish

1шт.

10

849482

DANGER DECAL

Rotating Driveline, French

1шт.

11

86593134

DECAL

Grease Per Hours Shown, English

1шт.

11

86593135

DECAL

Grease Per Hours Shown, Spanish

1шт.

11

86593136

DECAL

Grease Per Hours Shown, French

1шт.

12

849472

DANGER DECAL

Shield Missing, English

1шт.

12

9801256

DANGER DECAL

Shield Missing, Spanish

1шт.

12

849483

DANGER DECAL

Shield Missing, French

1шт.

13

86542773

LUBE NIPPLE

Press Fit

1шт.

14

86560318

YOKE

1 3/8-21 spline

1шт.

14a

86534533

REPAIR KIT

Auto-Lok, Used With Both Ref. 8

1шт.
