Запчасти Case IH DC102 (01.04[01]) - PRIMARY PTO COMPONENTS, FOR DRAWBAR HITCH FOR SWIVEL TONGUE (01) - PTO DRIVE SHAFT

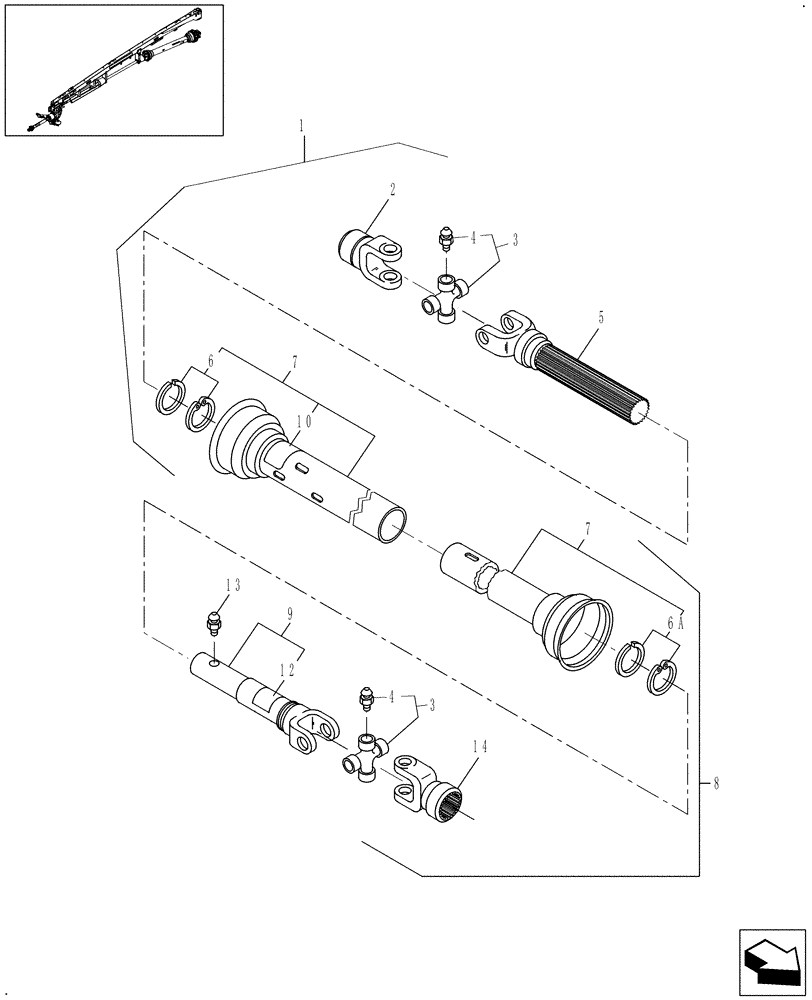

Схема запчастей Case IH DC102 - (01.04[01]) - PRIMARY PTO COMPONENTS, FOR DRAWBAR HITCH FOR SWIVEL TONGUE (01) - PTO DRIVE SHAFT
10
3
2
1
3
14
6
4
5
7
6a
13
12
8
4
7
9

Артикул

Название

Примечание

Количество

1

84290540

SHAFT

Front Half, Includes: Ref. 2 thru 7 and Ref. 10

1шт.

2

86560323

YOKE

1 3/8-6 Spline

1шт.

2a

86534533

REPAIR KIT

Auto-Lok

1шт.

3

86520896

BEARING ASSY

Cross and Bearing Kit

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

84290543

YOKE

& Shaft, 16.69" Long

1шт.

6

87039062

REPAIR KIT

Nylon Bearing, Services Ref. 7 Outer Shield

1шт.

6a

87050379

REPAIR KIT

Nylon Bearing, Services Ref. 7 Inner Shield

1шт.

7

84290548

GUARD

Set, Includes: Inner & Outer Shields and Decal

1шт.

8

84290541

SHAFT

Rear Half, Includes: Ref. 3, 4, 7, 9 , 13, 14 & 14a

1шт.

9

84290547

YOKE

Tube & Sleeve

1шт.

10

849471

DANGER DECAL

Rotating Driveline, English

1шт.

10

9801260

DANGER DECAL

Rotating Driveline, Spanish

1шт.

10

849482

DANGER DECAL

Rotating Driveline, French

1шт.

12

849472

DANGER DECAL

Shield Missing, English

1шт.

12

9801256

DANGER DECAL

Shield Missing, Spanish

1шт.

12

849483

DANGER DECAL

Shield Missing, French

1шт.

13

86542773

LUBE NIPPLE

Press Fit

1шт.

14

86560318

YOKE

1 3/8-21 spline

1шт.

14a

86534533

REPAIR KIT

Auto-Lok

1шт.

Выбрано товаров: 20
