Запчасти Case IH DC102 (01.03) - PRIMARY PTO, FRONT HALF, 1000 RPM (01) - PTO DRIVE SHAFT

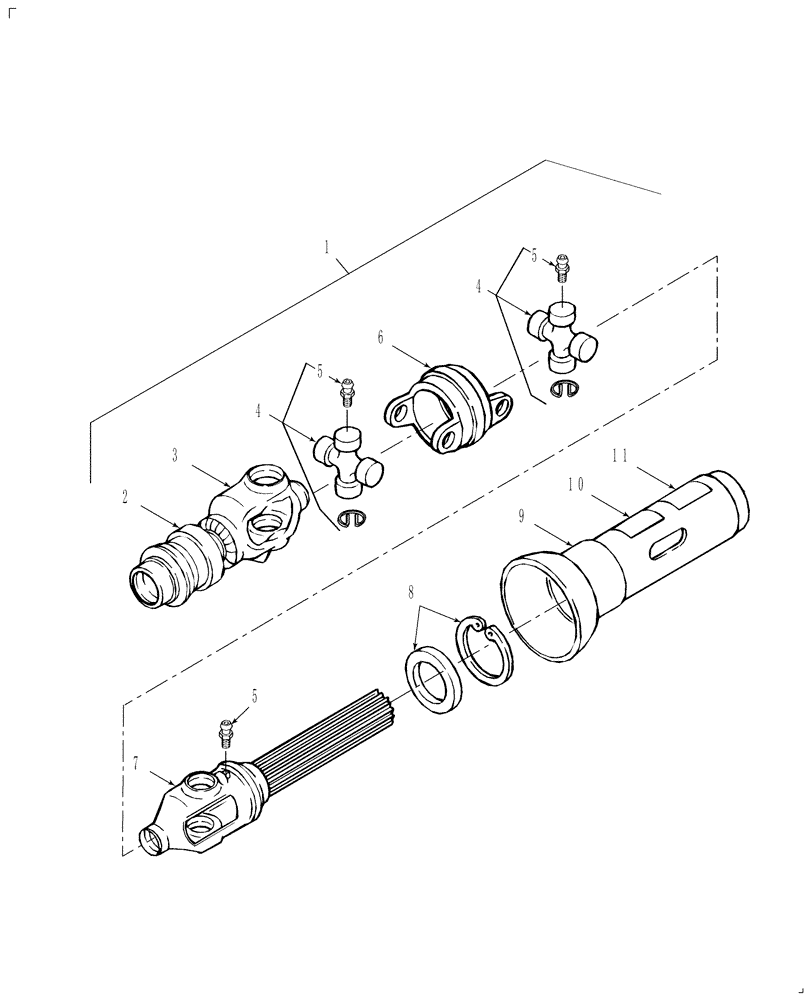

Схема запчастей Case IH DC102 - (01.03) - PRIMARY PTO, FRONT HALF, 1000 RPM (01) - PTO DRIVE SHAFT
9
1
8
4
5
6
5
10
5
7
11
3
4
2

Артикул

Название

Примечание

Количество

1

87039058

FRONT PTO ASSY

Half, 1-3/8"-21T Spline; Includes: Ref. 2 - 12

1шт.

84554147

PTO

Half, 1-3/8"-21T Spline, Includes: Ref. 2 - 12, Start Year: 01-JAN-12

1шт.

2

86534533

REPAIR KIT

Auto Lok, 1-3/8"

1шт.

Includes: (1) Retaining Ring, (1) Collar, (1) Spring, (2) Pawls & (4) Balls & Instructions.

1шт.

2

86539714

REPAIR KIT

Auto Lok, 1-3/4"

1шт.

Includes: (1) Retaining Ring, (1) Collar, (1) Spring, (2) Pawls & (4) Balls & Instructions.

1шт.

3

86534536

YOKE

Auto Lock, 1-3/8"-21T Spline

1шт.

3

86526268

YOKE

Auto Lock, 1-3/8"-6T Spline, Australia Only

1шт.

3

86533312

YOKE

Auto Lock, 1-3/4"-20T Spline

1шт.

84553988

YOKE

CAT 4, Auto-Lock, 1-3/8"-21T Spline, Start Year: 01-JAN-12

1шт.

4

86520900

BEARING ASSY

Cross & Bearing, Includes: Ref. 5

2шт.

86520904

BEARING ASSY

, Start Year: 01-JAN-12

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

3шт.

6

86526270

HOUSING

CV Center

1шт.

84367791

JOINT

CAT 4, CV Center, Start Year: 01-JAN-12

1шт.

7

86520901

YOKE

& Shaft

1шт.

8

87039056

REPAIR KIT

1шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring & Instructions.

1шт.

9

86510903

OUTER SHIELD

Includes: Ref. 7, 11, & 12

1шт.

10

87039057

GUARD

Set, Outer; Includes: Ref. 7, 11, 12, & Inner Guard, Fig. 01.04

1шт.

11

849472

DANGER DECAL

Rotating Driveline

1шт.

12

86520249

DECAL

Lubrication

1шт.

715291016

DIA KIT, ADD PROD

PTO Assy., Front & Rear Half

1шт.

Выбрано товаров: 23
