Запчасти Case IH DC102 (01.02) - PRIMARY PTO, REAR HALF, 540 RPM (01) - PTO DRIVE SHAFT

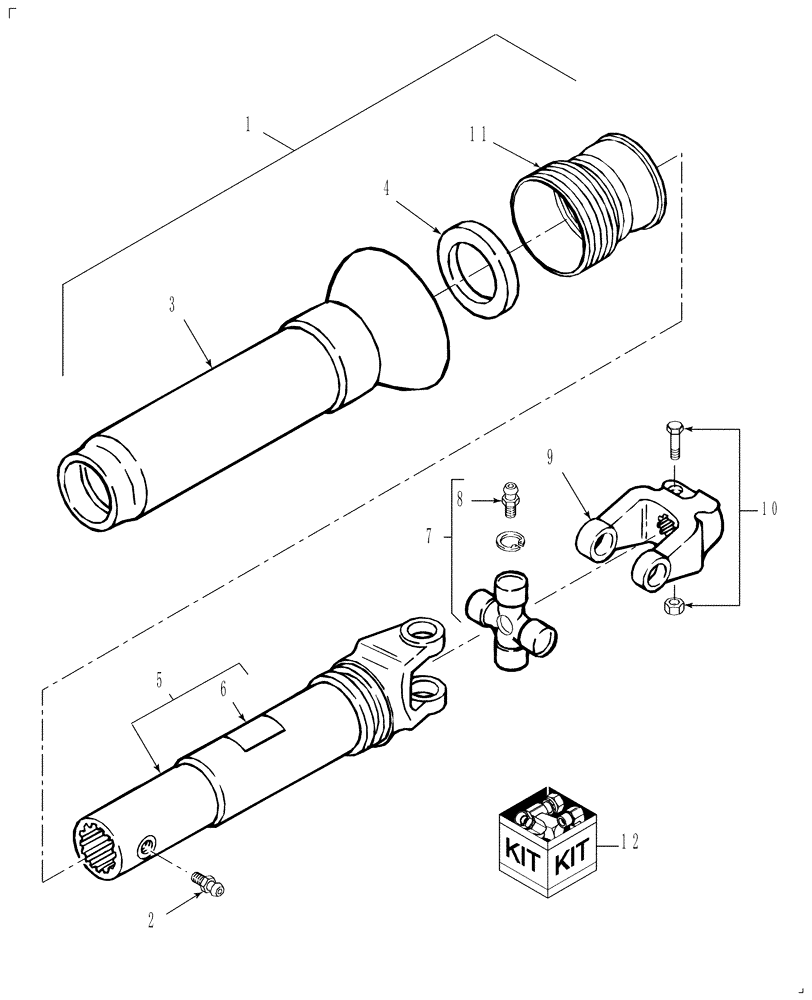

Схема запчастей Case IH DC102 - (01.02) - PRIMARY PTO, REAR HALF, 540 RPM (01) - PTO DRIVE SHAFT
5
4
2
7
6
9
10
8
12
1
3
11

Артикул

Название

Примечание

Количество

1

87558207

REAR PTO ASSY

Includes: Ref. 2 Thru 10

1шт.

2

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

3

NSS

NOT SOLD SEPARAT

SHIELD, Set, Includes: Ref. 4 & Outer Guard Assy On Fig. 01.01[02]

1шт.

4

86979196

BEARING,86mm ID x 132mm OD x 12mm H

Bearing

1шт.

5

87558206

YOKE

Outer Shaft

1шт.

6

849472

DANGER DECAL

Shield Missing, English

1шт.

7

87018244

CROSS

1шт.

8

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

9

87558196

YOKE

Includes: Ref. 10

1шт.

10

86625865

KIT

Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Shield Ext.

1шт.

12

87558194

SHIELD

Kit, Includes Ref. 3, 4 & 11

1шт.

715290026

PTO

PTO Assy., Front & Rear Half

1шт.

Выбрано товаров: 13
