Запчасти Case IH DC102 (01.01[01]) - PRIMARY PTO, FRONT HALF, 540 RPM (01) - PTO DRIVE SHAFT

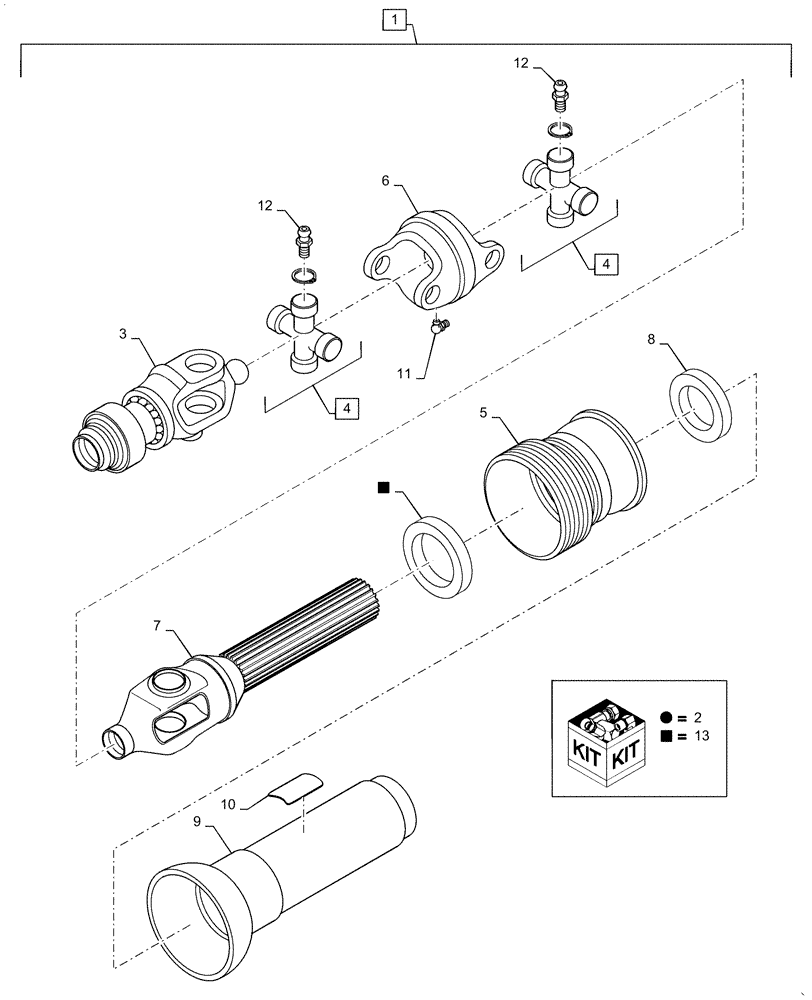

Схема запчастей Case IH DC102 - (01.01[01]) - PRIMARY PTO, FRONT HALF, 540 RPM (01) - PTO DRIVE SHAFT
12
12
4
3
13
7
2
5
1
10
13
11
8
6
13
2
4
9

Артикул

Название

Примечание

Количество

1

87558205

FRONT PTO ASSY

1шт.

2

87558192

REPAIR KIT

Includes: (1) Coil Spring, (1) Collar (3) Balls, (1) Snap Ring

1шт.

3

87558204

YOKE

Auto Lock

1шт.

4

87517823

BEARING ASSY

2шт.

5

NSS

NOT SOLD SEPARAT

Shield Extension

1шт.

6

87558197

HOUSING

CV, Center

1шт.

7

87558203

YOKE

& Shaft

1шт.

8

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

Bearing

1шт.

9

NSS

NOT SOLD SEPARAT

Shield, See ref. 13

1шт.

10

849471

DANGER DECAL

Rotating Driveline

1шт.

11

87549247

FITTING

2шт.

12

87517832

BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm

Bearing

1шт.

13

87558194

SHIELD

Set

1шт.

715290026

PTO

PTO Assy., Front & Rear Half

1шт.

Выбрано товаров: 14
