Запчасти Case IH DC102 (00.00) - RECOMMENDED INITIAL STOCKING LIST (ISL) FOR 5 UNITS (00) - GENERAL

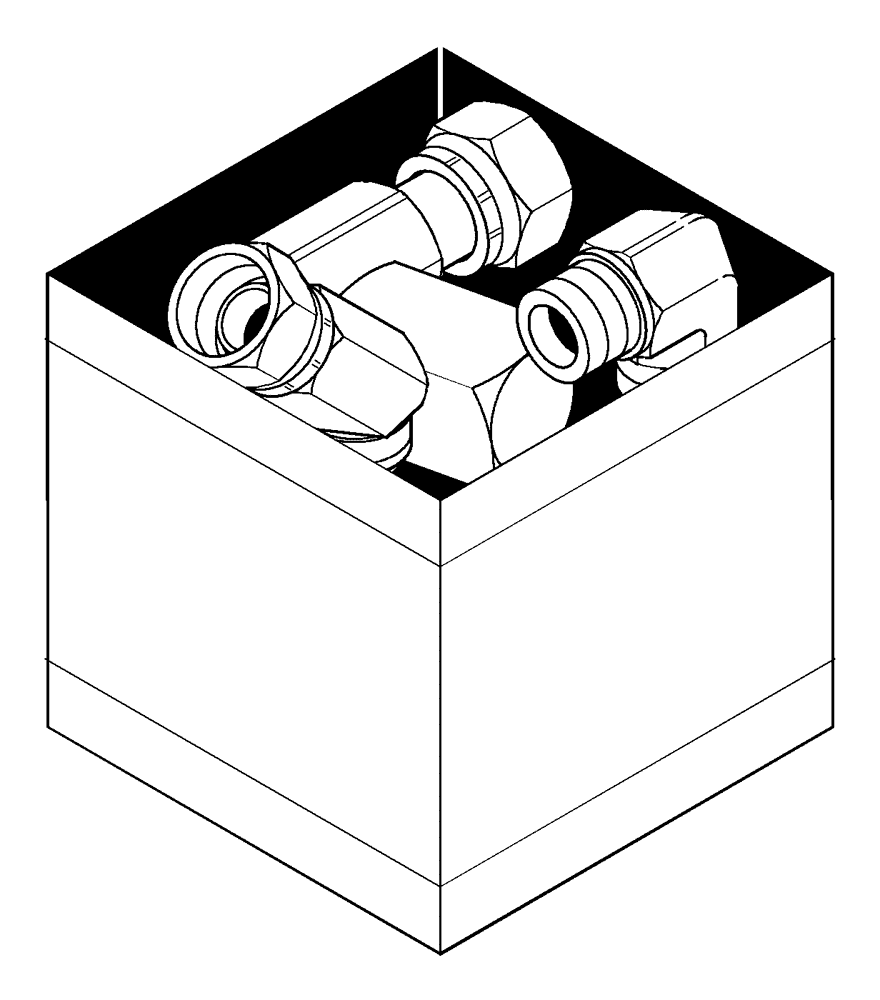

Схема запчастей Case IH DC102 - (00.00) - RECOMMENDED INITIAL STOCKING LIST (ISL) FOR 5 UNITS (00) - GENERAL

Артикул

Название

Примечание

Количество

9861804DS

GREASE

For Shaft 86519042

1шт.

86501934

THREADED ROD

3/4" x 12-13/64"

2шт.

86511201

SEAL

2шт.

86515894

SLINGER

1шт.

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

15шт.

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

15шт.

86518194

NUT,3/4"-10, G8

4шт.

86519042

SHAFT

Intermodule, 248mm

1шт.

86520896

BEARING ASSY

1шт.

86551252

SPIDER

Snap Rings NSS

1шт.

86557260

SPECIAL NUT

Special, Lock, 3/4"-10, Cutterbar Mounting

4шт.

86571960

BOLT

4шт.

87721979

BOLT

, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

86572966

REPAIR KIT

Over-Running Clutch

1шт.

84482626

BEARING ASSY,Bearing and Housing

1шт.

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

2шт.

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

86589279

BELLEVILLE WASHER,M10 Bolt Size x 24mm OD x 3mm Thk

3шт.

86601404

REPAIR KIT

Friction Disc

1шт.

86621872

BLADE

14°, CCW

100шт.

86621873

BLADE

14°, CW

100шт.

86627791

V-BELT,0.66" W x 76.80" L, 4 Ribs

1шт.

87029587

BLADE

CW, 14° Twist, Over-Serrated

100шт.

87029588

BLADE

CCW, 14° Twist, Over-serrated

100шт.

87039878

GEARBOX

CW Module

1шт.

87039879

GEARBOX

CCW Module

1шт.

84220791

PINION

Drive

1шт.

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

25шт.

87047426

SKID/SHOE

1шт.

87047845

STONEGUARD

1шт.

87053834

NUT

Knife

25шт.

87376403

SEAL

Hub

3шт.

87376405

LOCK WASHER,28.68mm ID x 56mm OD x 6.35mm Thk

Splined

3шт.

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 3/4", Locking Patch

3шт.

87580643

REPAIR KIT

Shock Hub

1шт.

87584169

BOLT,5/8" - 11 x 1-1/2"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 1/2", Locking Patch

3шт.

87646406

DISC

1шт.

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Cutterbar Mounting

4шт.

87753841

CAP

Kit, Repair, Standard Hub

3шт.

87753842

REPAIR KIT

Kit, Repair, Shock Hub

3шт.

Выбрано товаров: 40
