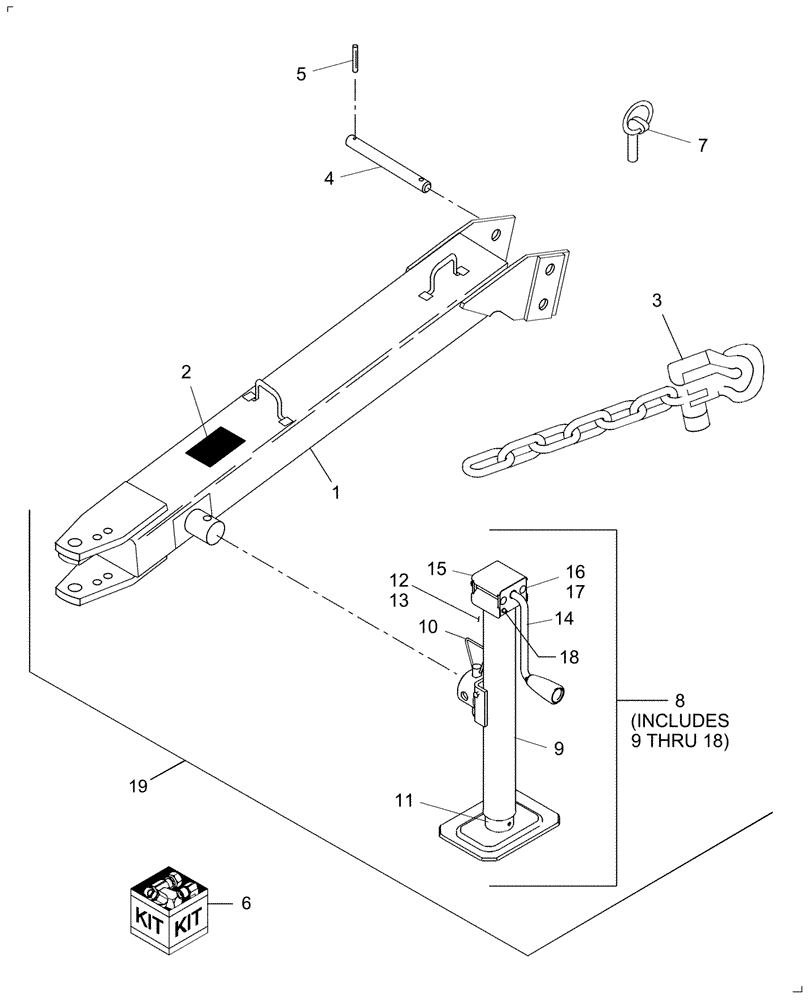

Запчасти Case IH DC102 (18.03) - NON-TRACTOR TOW BAR Attachments

1

86617510

BAR

Includes: Ref. 2

1шт.

2

87041060

WARNING DECAL

English

1шт.

2

87042011

WARNING DECAL

WARNING, Towing, French

1шт.

2

87042012

WARNING DECAL

WARNING, Towing, Spanish

1шт.

3

850116

CHAIN

Safety

1шт.

4

86572965

PIN

10-3/4" L

2шт.

5

88276

GROOVED PIN,7.94mm OD x 50.8mm L

2шт.

6

855228

KIT

Chain, Safety, Hardware

1шт.

7

132757

LINCH PIN,11.11mm OD x 44.45mm L

1-5/8" ID

2шт.

8

86617866

JACK

Includes: Ref. 9 - 18

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Outer

1шт.

10

86590810

KIT

Jack, Pin & Chain

1шт.

11

NSS

NOT SOLD SEPARAT

Tube, Inner

1шт.

12

86590811

KIT

Gear

1шт.

13

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

14

86590812

KIT

Crank

1шт.

15

86590816

COVER

Gearbox

1шт.

16

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

18

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

19

716548006

DIA KIT, ADD PROD

Tow Bar

1шт.
