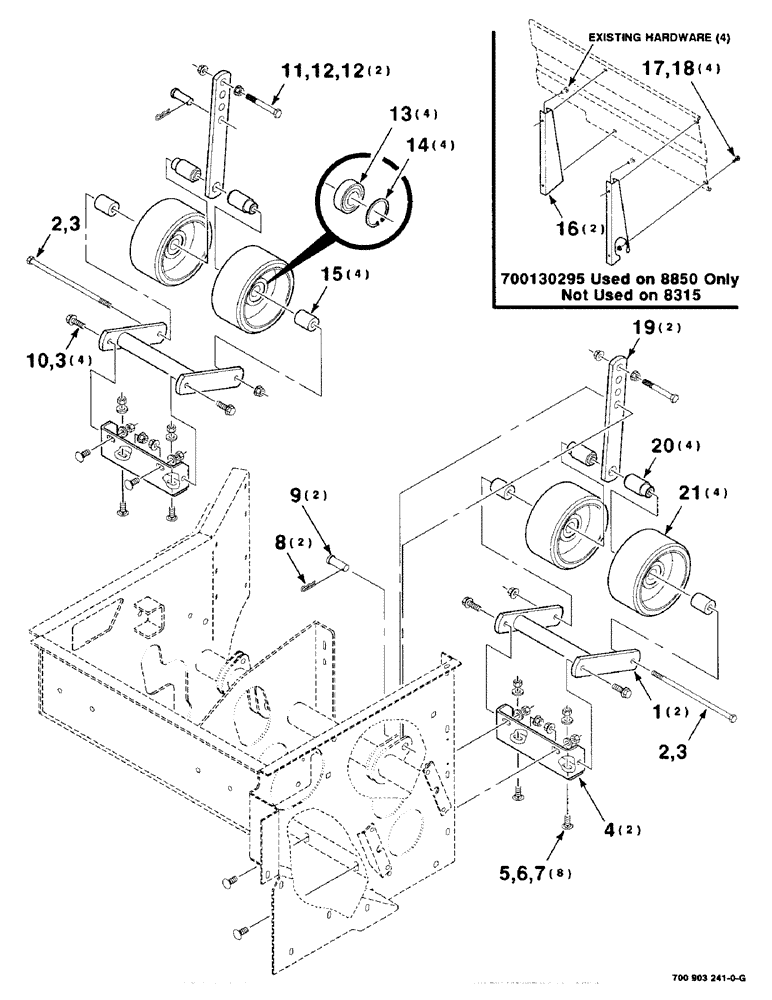

Запчасти Case IH 8315 (9-12) - GAUGE WHEEL KIT, HK60811 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK60811

WHEEL

GAUGE WHEEL KIT COMPLETE

1шт.

1

700130287

ARM

WA

2шт.

2

7773419

BOLT

1/2-13 X 12 B

2шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

4

700130291

ANGLE

2шт.

5

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

8

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

9

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

10

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

4шт.

11

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - double row

4шт.

14

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

4шт.

15

700130293

SPACER

4шт.

16

700130295

CHANNEL

2шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

19

700130292

STRAP

2шт.

20

700130290

SPACER

4шт.

21

700119691

WHEEL

ASSEMBLY (Includes items 13 and 14)

4шт.
