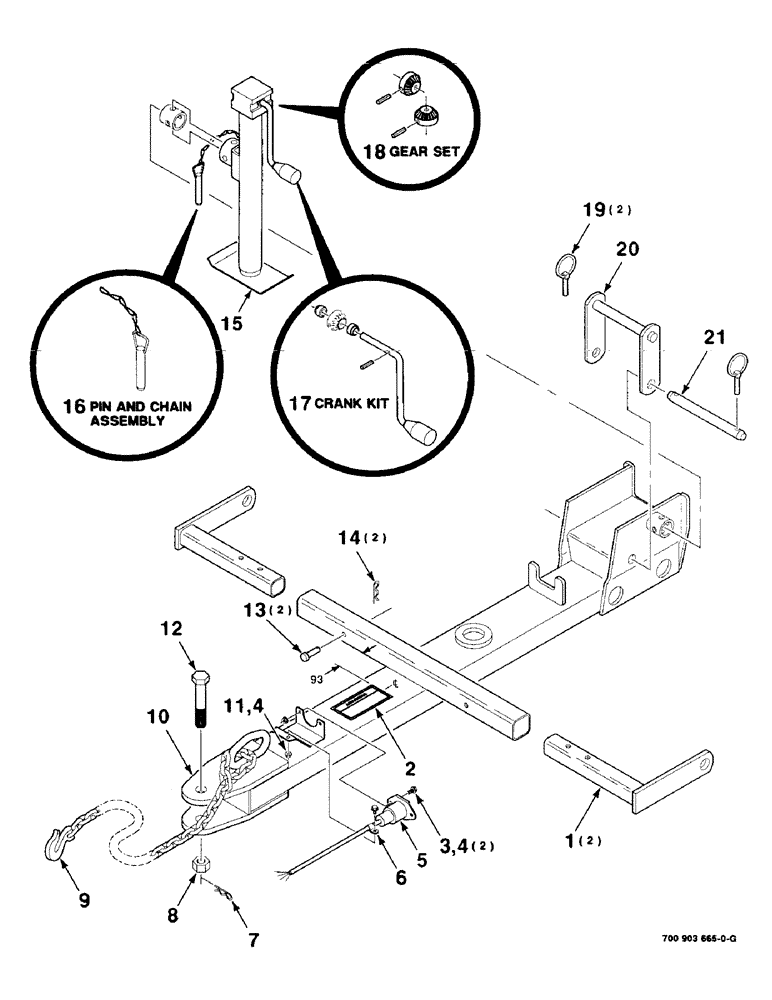

Запчасти Case IH 8315 (9-10) - 3 POINT TOW BAR KIT, HK10846, 3 POINT TOW BAR KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK10846

3 POINT TOW BAR KIT COMPLETE

1шт.

1

700130630

SUPPORT

WA

2шт.

2

700714702

DECAL

- warning

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

5

700715033

HARNESS

- wire, adapter

1шт.

6

700708090

CLAMP

- line

1шт.

7

62455

PIN, SPLIT (COTTER)

.178 WIRE HAIR PIN COTTER

1шт.

8

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

9

700705598

CHAIN (CE)

SAFETY CHAIN - 10K

1шт.

10

HK10846

BAR WA - tow

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

12

700108808

SCREW

- hitch

1шт.

13

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

2шт.

14

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

15

700709385

JACK

1шт.

16

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

17

700702060

CRANKED HANDLE

CRANK KIT

1шт.

18

700702059

KIT

GEAR SET

1шт.

19

D130037

HEADED PIN,8.73mm OD

LYNCH PIN

2шт.

20

700130645

LATCH

WA

1шт.

21

700130644

PIN

1шт.
