(9-06) - SKID SHOE KIT, HK10615 SKID SHOE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH 8315 (9-06) - SKID SHOE KIT, HK10615 SKID SHOE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

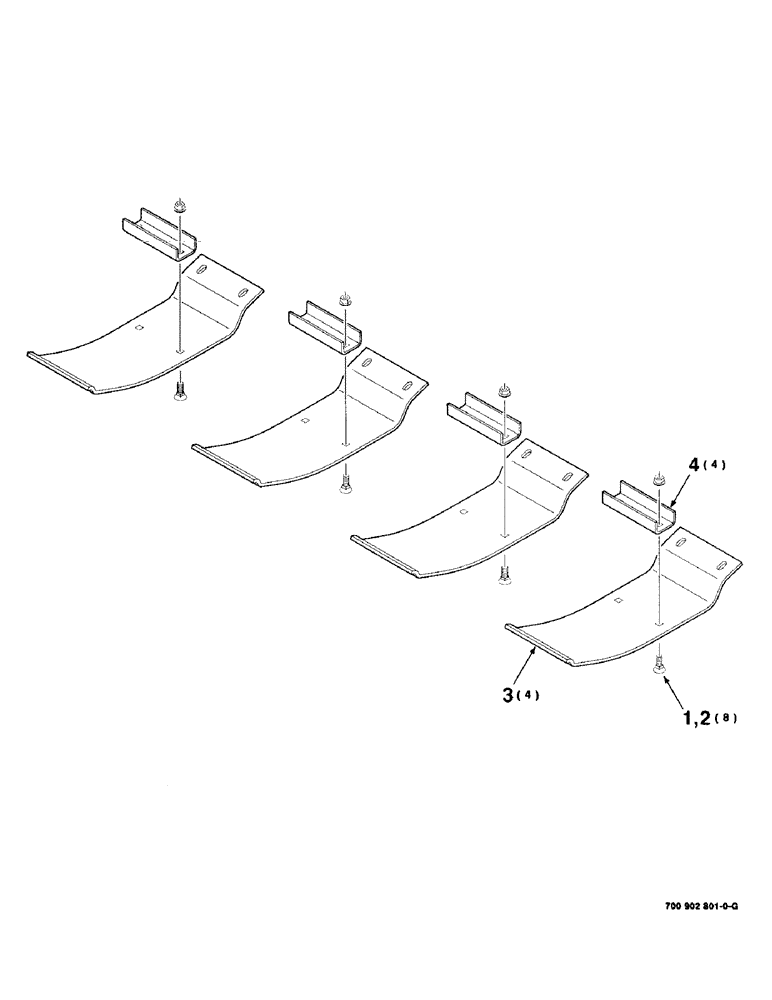

Схема запчастей Case IH 8315 - (9-06) - SKID SHOE KIT, HK10615 SKID SHOE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK10615

SKID/SHOE

SKID SHOE KIT COMPLETE

1шт.

1

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

8шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

3

700713303

SHOE

SKID SHOE - high

4шт.

4

700130189

CHANNEL

4шт.
