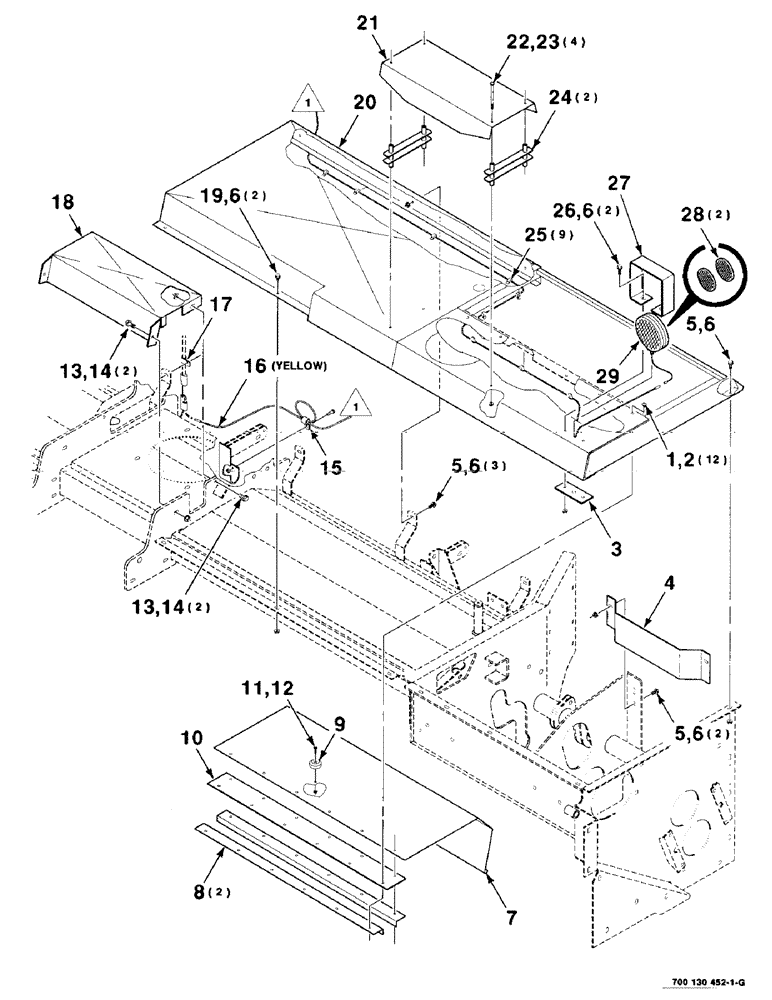

Запчасти Case IH 8315 (7-28) - SHIELDS ASSEMBLY LEFT, SAFETY (09) - CHASSIS

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRPHMS GR 60M

12шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

12шт.

3

700130595

PLATE

- flasher

1шт.

4

700130531

STRAP

- shield

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

7

700130523

SHIELD

- left

1шт.

8

700130530

SUPPORT

ANGLE

2шт.

9

700708648

BUMPER

RUBBER BUMPER

1шт.

10

700713880

BELT

STRAP - belting

1шт.

11

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

12

1954816C1

LOCK NUT

#12-24 LOCKNUT - special

1шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

14

231-5146

FLANGE NUT,3/8"-16

GR/F Flg, USR, 3/8"-16

4шт.

15

751321

CLAMP

- line

1шт.

16

700713888

ELECTRICAL WIRE

WIRE - flasher, L

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

1шт.

18

700127375

SHIELD

- front, lower

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

20

700130516

SHIELD

WA - top, left

1шт.

21

700130532

SHIELD

1шт.

22

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

1/4-20 X 3-3/4 C

4шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

24

700130533

STRAP

WA

2шт.

25

722496

CLIP

- wire

9шт.

26

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

27

700114720

GUARD

- light

1шт.

28

700711749

LENS

- flasher

2шт.

29

199954A1

PACKAGE

LIGHT - flasher (Includes item 28)

1шт.
