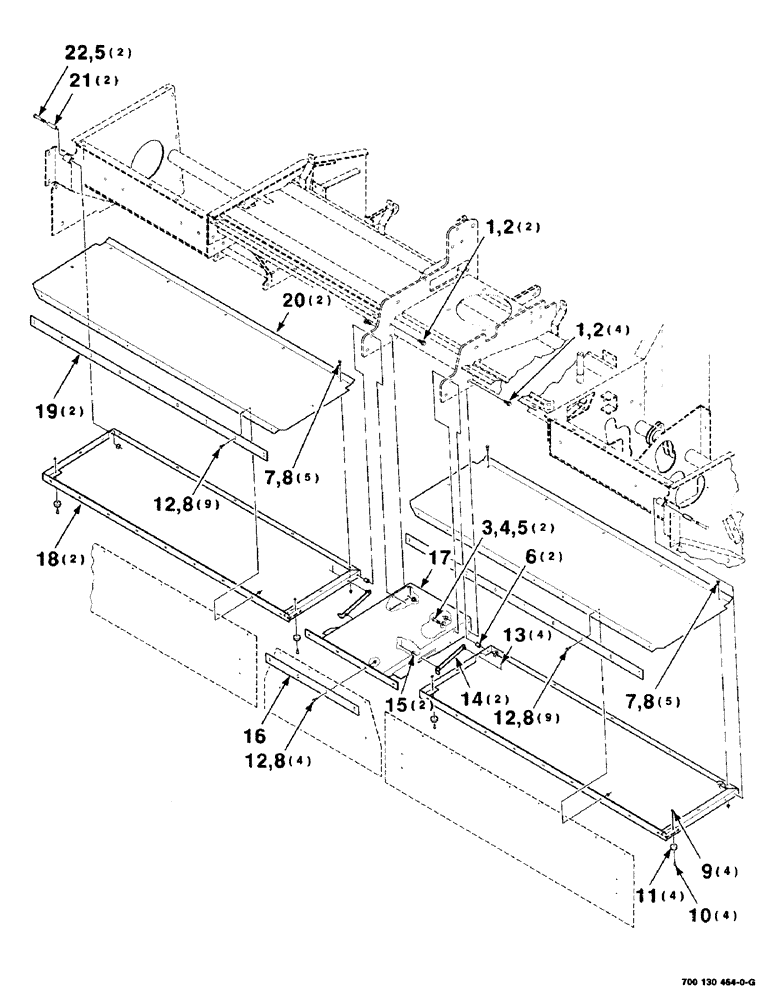

Запчасти Case IH 8315 (7-26) - SHIELDS ASSEMBLY, CUTTERBAR (09) - CHASSIS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

6547863

SPACER

2шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

32шт.

9

1954816C1

LOCK NUT

#12-24 LOCKNUT - special

4шт.

10

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

4шт.

11

700708648

BUMPER

- rubber

4шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

22шт.

13

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

4шт.

14

700127224

LATCH

WA

2шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

16

700130174

STRAP

1шт.

17

700127232

SUPPORT

WA - shield, center

1шт.

18

700130169

SHIELD

SUPPORT WA - shield, front

2шт.

19

700130173

STRAP

2шт.

20

700130172

SHIELD

- front

2шт.

21

158675

SPACER

2шт.

22

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.
