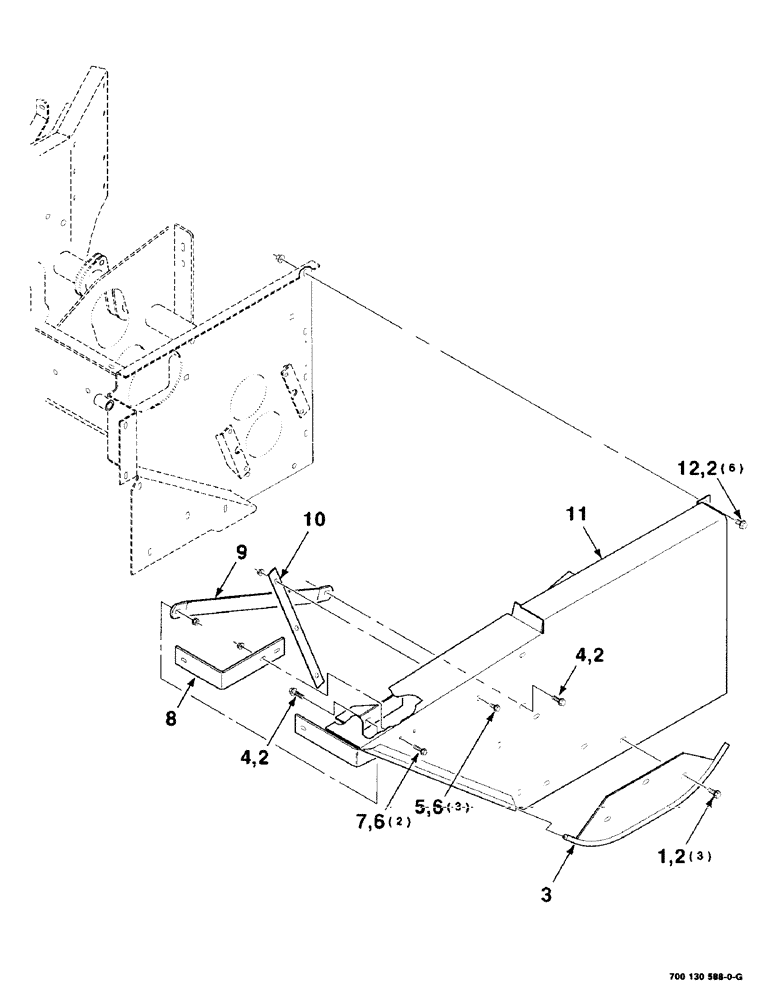

Запчасти Case IH 8315 (7-22) - SHIELDS ASSEMBLY, LEFT (09) - CHASSIS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

2

231-5146

FLANGE NUT,3/8"-16

11шт.

3

700130220

ROD

WA

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

7

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

8

700130232

ANGLE

1шт.

9

700130219

STRAP

1шт.

10

700130233

STRAP

1шт.

11

700130223

PANEL

WA - end, left

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.
