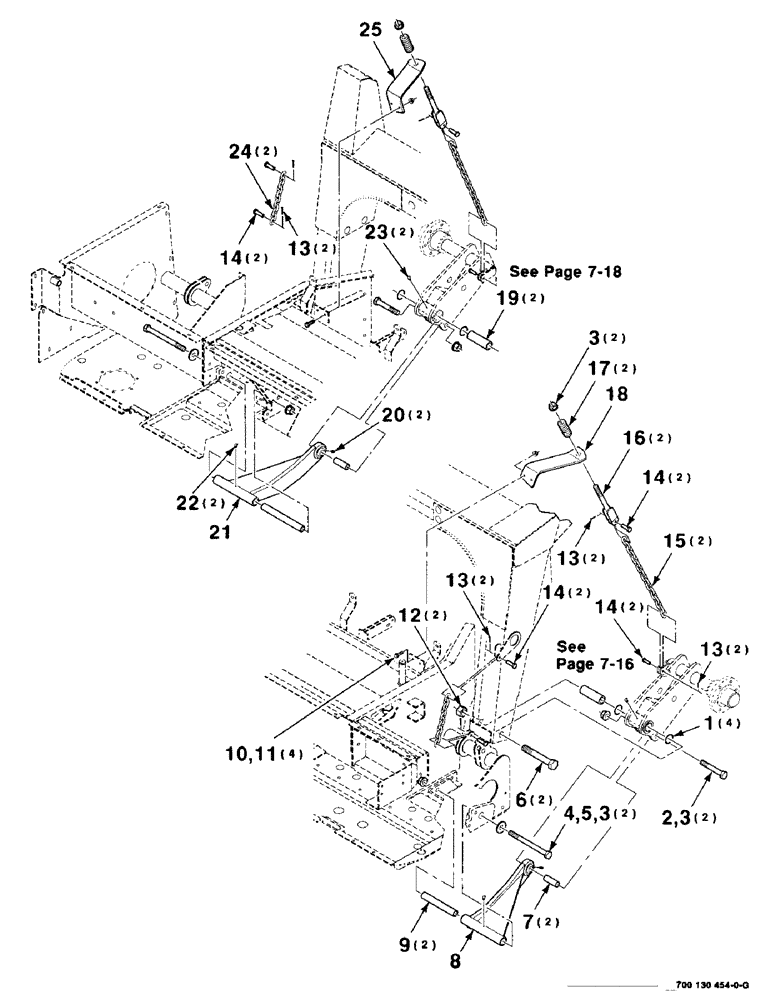

Запчасти Case IH 8315 (7-12) - HEADER FLOTATION ASSEMBLY, LOWER (09) - CHASSIS

1

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

2

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

2шт.

3

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

6шт.

4

426-12192

BOLT,Hex, 3/4" - 10 x 12", Gr 8

3/4-10 X 12 B

2шт.

5

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

6

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1-8 X 6 C

2шт.

7

700130602

SPACER

- hardened

2шт.

8

700127298

ARM

WA - lower, left

1шт.

9

700127286

SPACER

2шт.

10

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

12

425-1416

JAM NUT,Jam, 1"-8, G5

1-8 HJN GR 2

2шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

8шт.

14

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 X 1-1/4 CLEVIS PIN (Hardened)

8шт.

15

700712002

CHAIN (AG)

CHAIN

2шт.

16

700127305

CLEVIS

WA

2шт.

17

858696

SPRING

- compression

2шт.

18

700127404

SUPPORT

- left

1шт.

19

700127304

BUSHING

- strut

2шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

21

700127302

ARM

WA - lower, right

1шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

23

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

24

700711880

CHAIN (AG)

CHAIN

2шт.

25

700127405

SUPPORT

- right

1шт.
