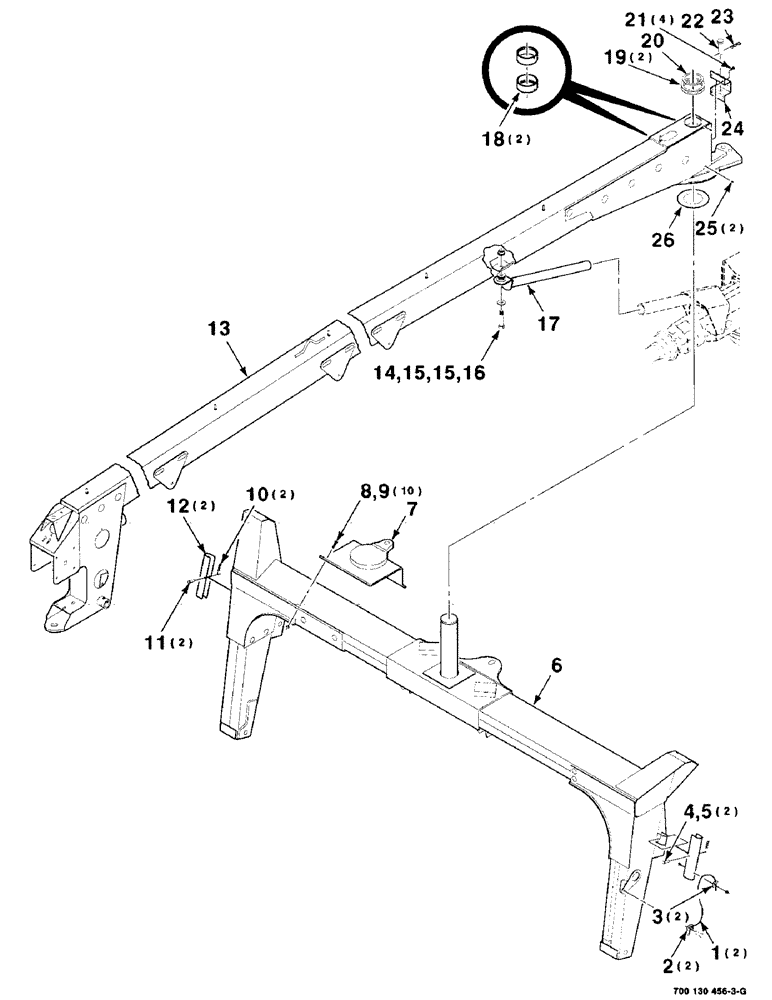

Запчасти Case IH 8315 (7-06) - TONGUE AND FRAME ASSEMBLY (09) - CHASSIS

1

700706805

CABLE

2шт.

2

700130552

ANCHOR

- cable

2шт.

3

700114675

ANCHOR

- cable

2шт.

4

706176

SCREW

5/16-18 X 3/4 CRTHMS

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

6

700130553

FRAME

MAINFRAME WA

1шт.

7

700115148

LUG

WA

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

9

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

10шт.

10

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

11

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

2шт.

12

700115186

STOP

- safety

2шт.

13

700130470

TOW BAR

TONGUE WA (Includes item 18)

1шт.

14

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

15

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

16

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

17

700127362

SLIDE

WA

1шт.

18

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

- bronze

2шт.

19

700115299

WASHER

MACHINERY BUSHING - spl, 5 OD

2шт.

20

700706827

RING, SNAP

RING - retaining, external

1шт.

21

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

22

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

23

062455

PIN, SPLIT (COTTER)

.178 WIRE HAIR PIN COTTER

1шт.

24

700127036

SUPPORT

- valve

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

26

700115300

WASHER

MACHINERY BUSHING - spl, 6-3/4 OD

1шт.
