(5-10) - U-JOINT ASSEMBLY, UPPER JACKSHAFT, 700705407 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8315 (5-10) - U-JOINT ASSEMBLY, UPPER JACKSHAFT, 700705407 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

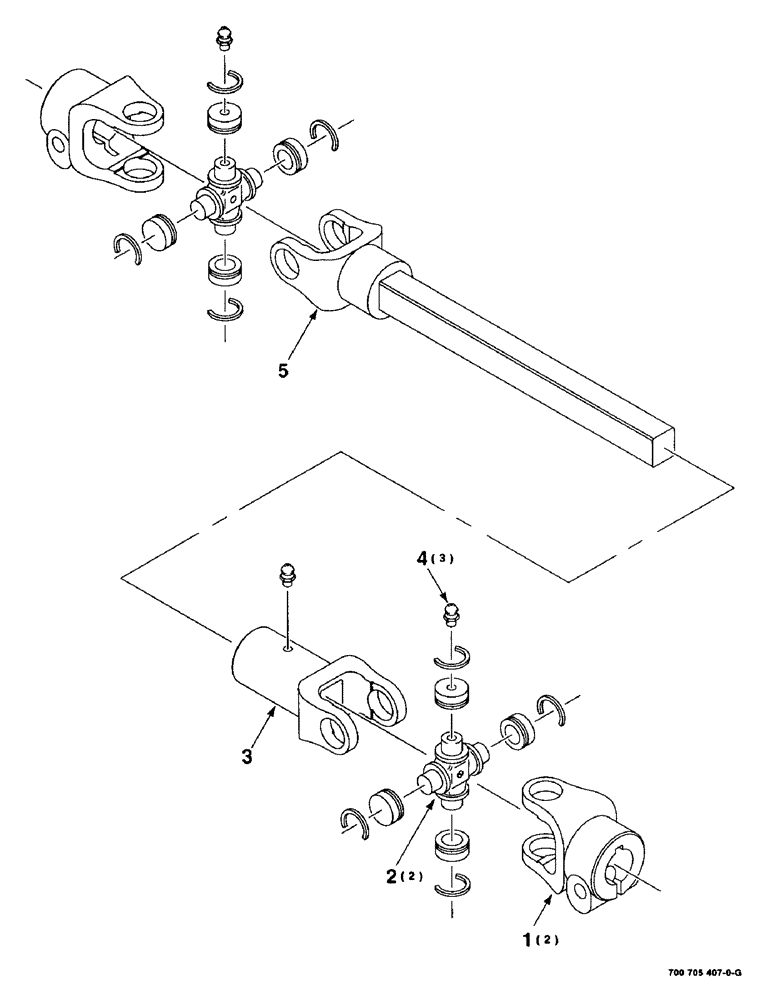

Схема запчастей Case IH 8315 - (5-10) - U-JOINT ASSEMBLY, UPPER JACKSHAFT, 700705407 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700705407

DRIVE SHAFT

U-JOINT ASSEMBLY COMPLETE

1шт.

1

757716

CLAMP

YOKE - clamp

2шт.

2

757443

U-JOINT SPIDER

KIT - cross and bearing

2шт.

3

700704955

YOKE

- slip

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

5

700704954

YOKE

AND SHAFT

1шт.
