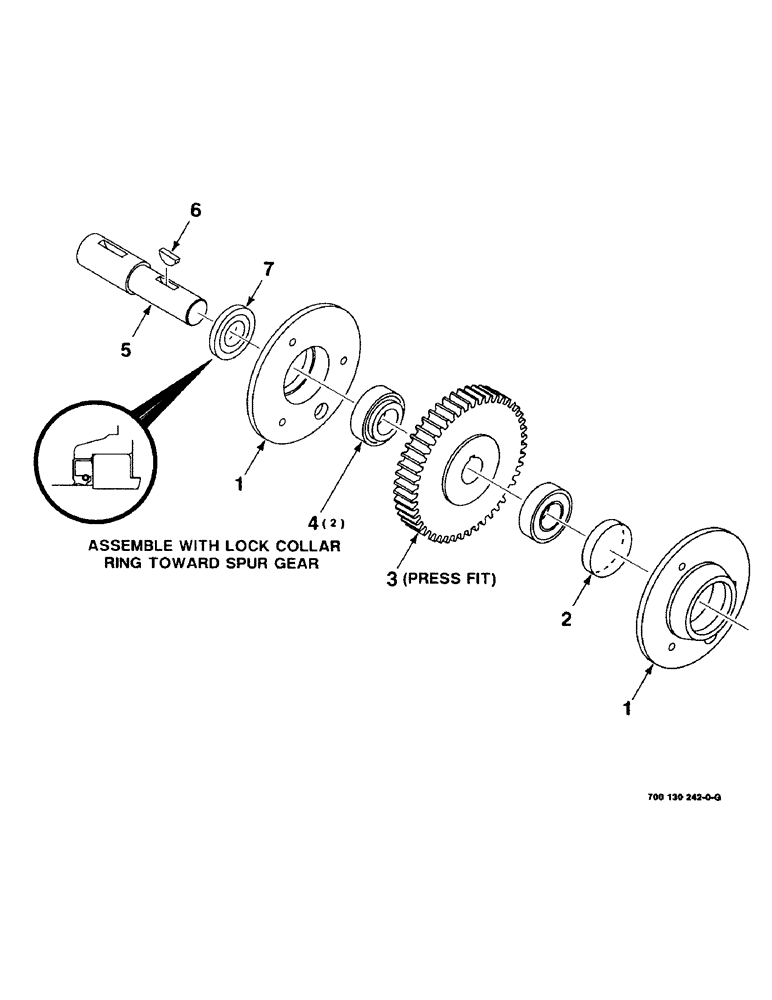

Запчасти Case IH 8315 (5-06) - SHAFT ASSEMBLY, LOWER (09) - CHASSIS

1

700130244

RETAINER

- bearing

2шт.

2

700712677

PLUG

1шт.

3

700713436

GEAR

1шт.

4

700130246

SHAFT

BEARING - cylindrical

2шт.

should read p/n 1710268 which subs to p/n 618210R92

1шт.

5

700130246

SHAFT

- lower

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

7044951

OIL SEAL

- oil

1шт.
