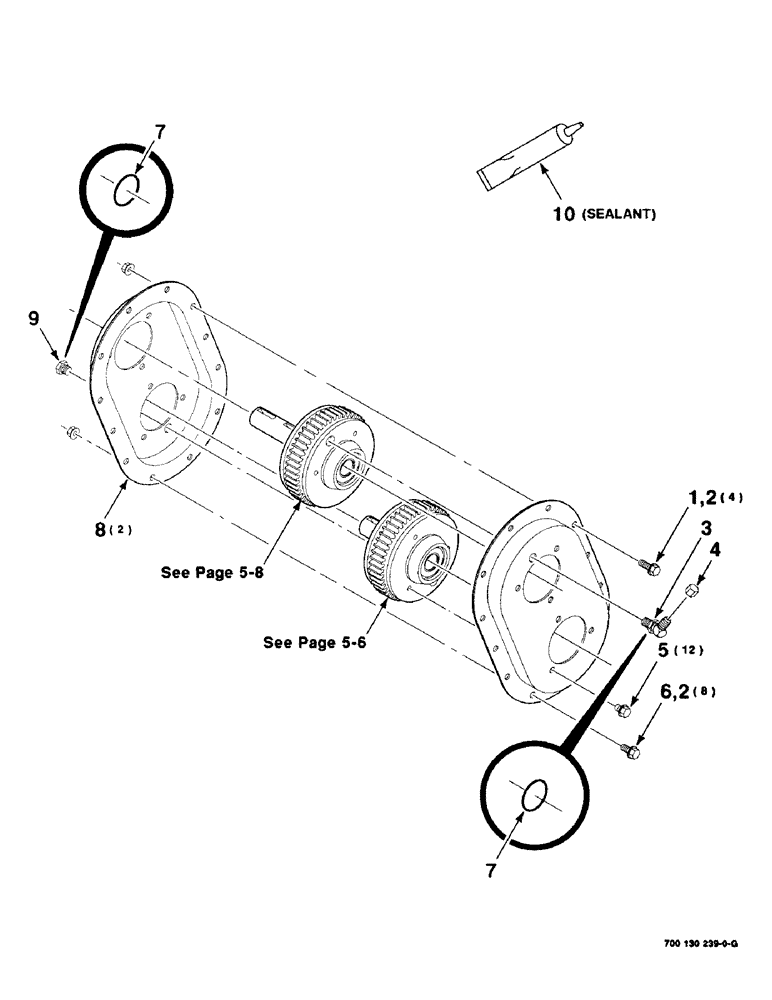

Запчасти Case IH 8315 (5-04) - GEARBOX ASSEMBLY (09) - CHASSIS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

231-5146

FLANGE NUT,3/8"-16

12шт.

3

7846801

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- str thd 45 degrees

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

1шт.

5

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

12шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

700130240

PLATE

- half

2шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

700707823

SEALANT

- 12 oz tube

1шт.
