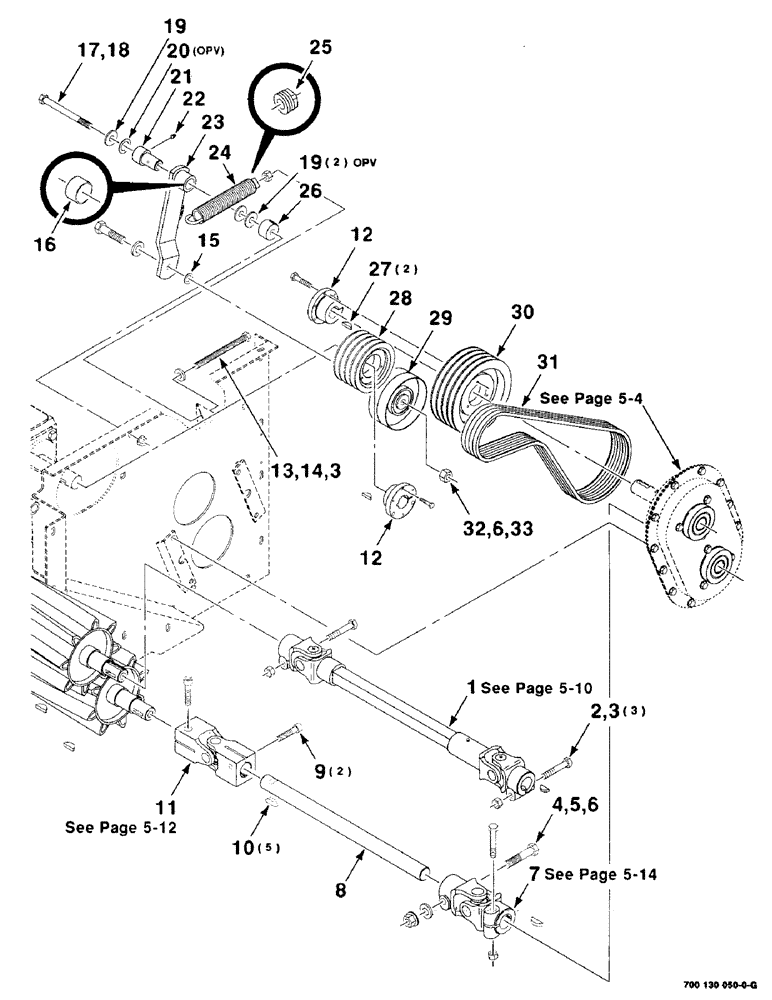

Запчасти Case IH 8315 (5-02) - HAY CONDITIONER DRIVE ASSEMBLY (09) - CHASSIS

1

700705407

DRIVE SHAFT

U-JOINT ASSEMBLY

1шт.

2

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

3шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

7

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

8

700130234

SHAFT

1шт.

9

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8-16 X 1-3/4 HSHCS SPL

2шт.

10

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

11

700713437

JOINT

U-JOINT ASSEMBLY

1шт.

12

7747280

ASSEMBLY

BUSHING - tapered

2шт.

13

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

1шт.

14

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

15

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GA NRMB

1шт.

16

740217

BUSHING

- oilite

1шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

19

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

3шт.

20

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 X 18 GAUGE NRMB

1шт.

21

700130238

BUSHING

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

23

700130247

ARM

WA (Includes item 16)

1шт.

24

6189971

SPRING

ASSEMBLY (Includes item 25)

1шт.

25

6189989

PLUG

- spring

1шт.

26

6235071

BUSHING

SPACER

1шт.

27

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

28

700130235

SHEAVE

- driver

1шт.

29

51200295

FRONT IDLER

IDLER - flat

1шт.

30

700130236

SHEAVE

- driven

1шт.

31

700713435

SET OF BELTS,1320.00 mm L

4 Matched, V-Belt 1320.00 mm L

1шт.

32

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

33

425-1010

NUT,5/8"-11, G5

1шт.
