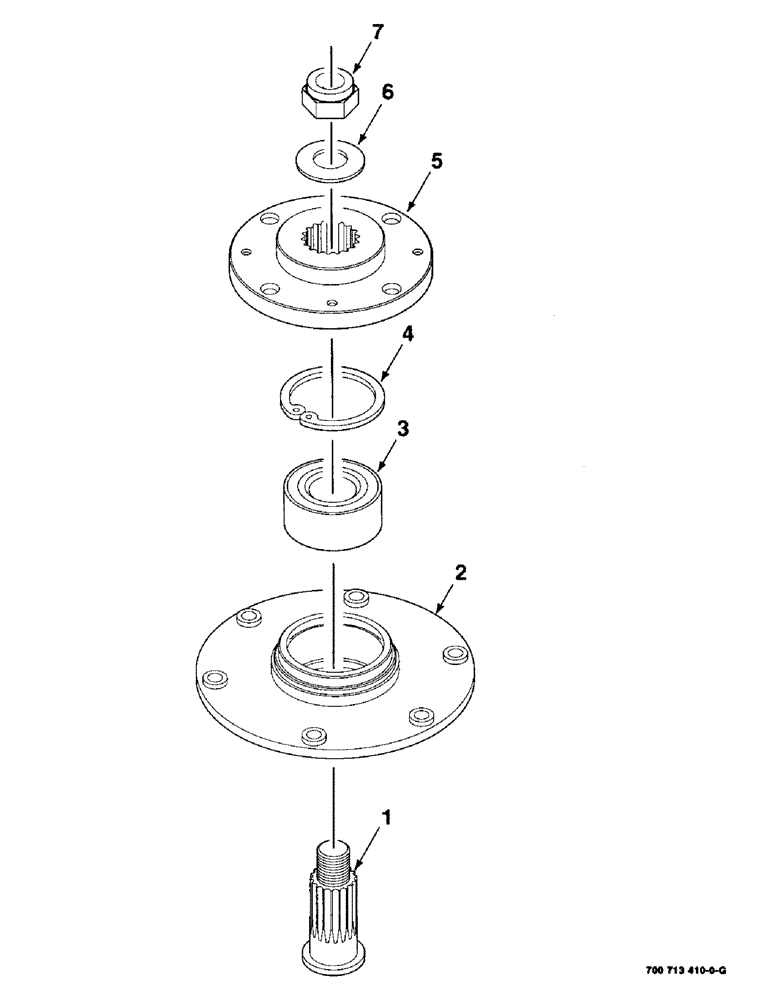

Запчасти Case IH 8315 (3-12) - SPINDLE ASSEMBLY, 700713410 SPINDLE ASSEMBLY COMPLETE (09) - CHASSIS

700713410

SPINDLE

ASSEMBLY COMPLETE

1шт.

1

700713419

SHAFT

1шт.

2

700712400

MOUNTING PARTS

MOUNTING

1шт.

3

700712402

BALL BEARING

BEARING

1шт.

700714310

BALL BEARING,34.976 mm ID x 72.043 mm OD x 33 mm

BEARING

1шт.

4

700712375

SNAP RING

RING - retaining

1шт.

5

700712405

FLANGE

1шт.

700713468

FLANGE

- outboard

1шт.

6

700712409

BELLEVILLE WASHER

WASHER - Belleville

1шт.

7

700712408

LOCK NUT

M24 X 3 LOCKNUT

1шт.
