(3-10) - U-JOINT ASSEMBLY, CUTTER DISC, 700713411 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8315 (3-10) - U-JOINT ASSEMBLY, CUTTER DISC, 700713411 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

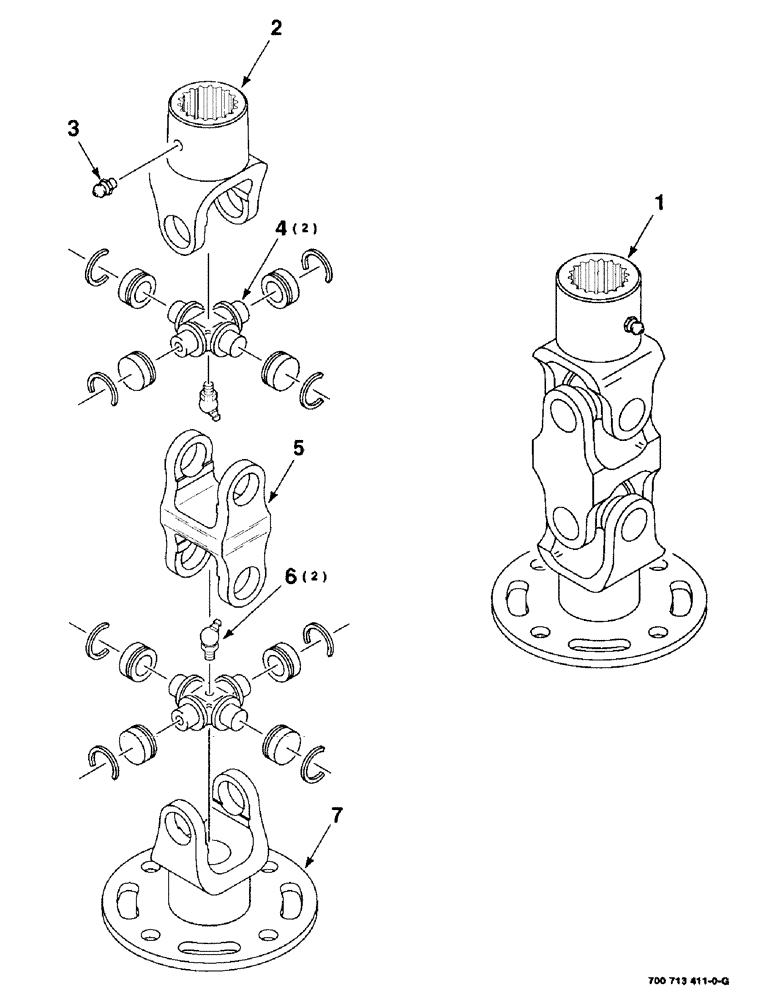

Схема запчастей Case IH 8315 - (3-10) - U-JOINT ASSEMBLY, CUTTER DISC, 700713411 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
6
2
7
4
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700713411

FLEXIBLE JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

700711938

FORK

YOKE - splined

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

2шт.

5

757427

FORK

YOKE - double

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK - 65 degrees

2шт.

7

700713523

FORK

YOKE & FLANGE

1шт.

Выбрано товаров: 0
