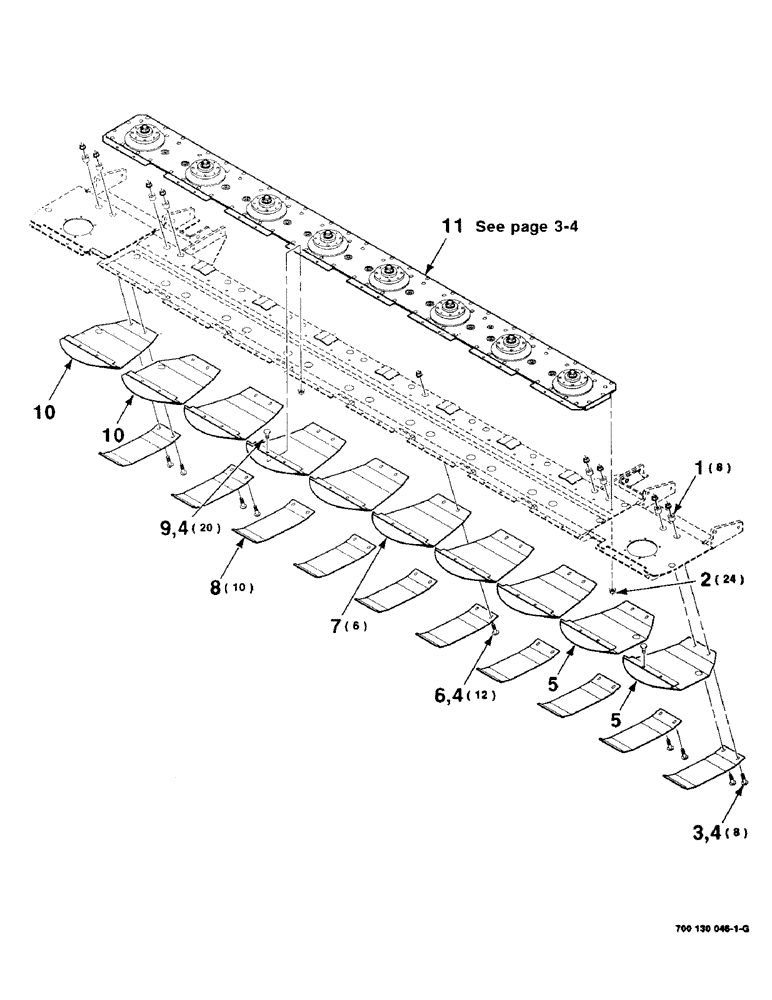

Запчасти Case IH 8315 (3-02) - CUTTER BAR, ROCK GUARD AND SKID SHOE ASSEMBLY (09) - CHASSIS

1

6457782

SPACER

8шт.

2

700711876

LOCK NUT

M10 X 1.5 HFTN CL9

24шт.

3

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

8шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

40шт.

5

700127397

GUARD

WA - rock, left

2шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

12шт.

7

700127055

GUARD

WA - rock

6шт.

8

700713422

SHOE

SKID SHOE

10шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

20шт.

10

700127398

GUARD

WA - rock, right

2шт.

11

700713464

CUTTER BAR

ASSEMBLY

1шт.
