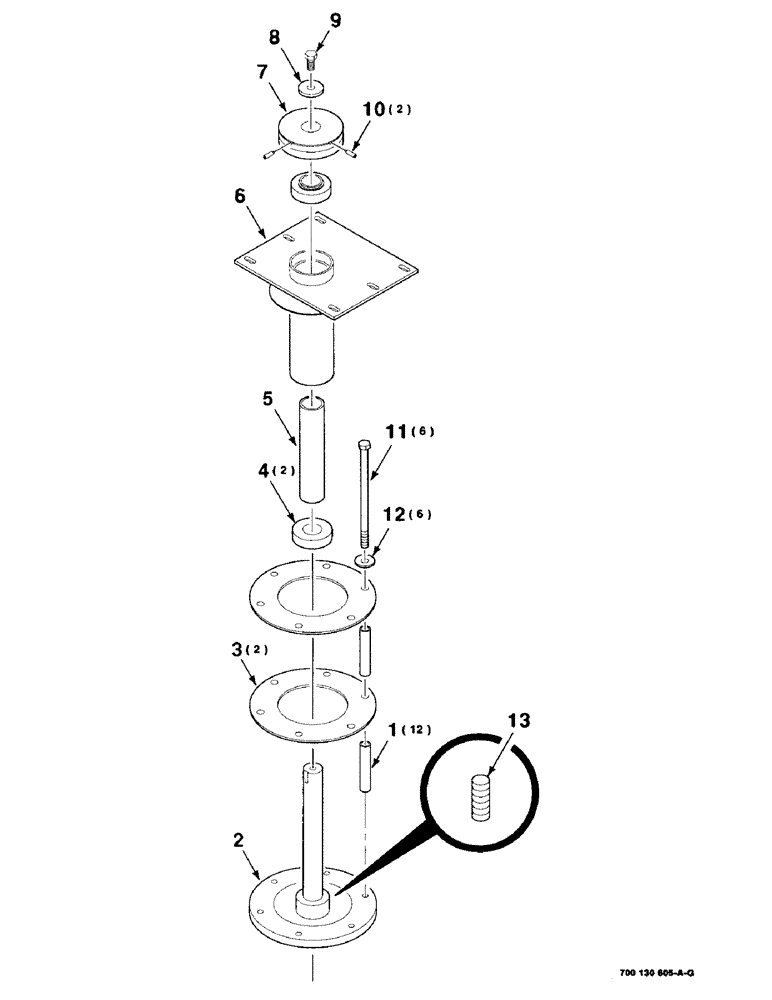

Запчасти Case IH 8315 (2-32) - CAGE ASSEMBLY (09) - CHASSIS

1

6559314

SPACER

12шт.

2

700130606

HUB

ASSEMBLY (Includes item 13)

1шт.

3

700127061

RING

- cage

2шт.

4

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

2шт.

5

700130615

TUBE

- spacer

1шт.

6

700130610

SUPPORT

WA

1шт.

7

700130123

SHEAVE

(S.N. CFH0104001 thru CFH0104075) single pulley

1шт.

700130652

SHEAVE

(S.N. CFH0104076 and later) double pulley

1шт.

8

282269

WASHER

1шт.

9

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

10

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS NP

2шт.

11

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

6шт.

12

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.

13

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

1шт.
