(2-30) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSEMBLY COMPLETE

Запчасти Case IH 8315 (2-30) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSEMBLY COMPLETE (09) - CHASSIS

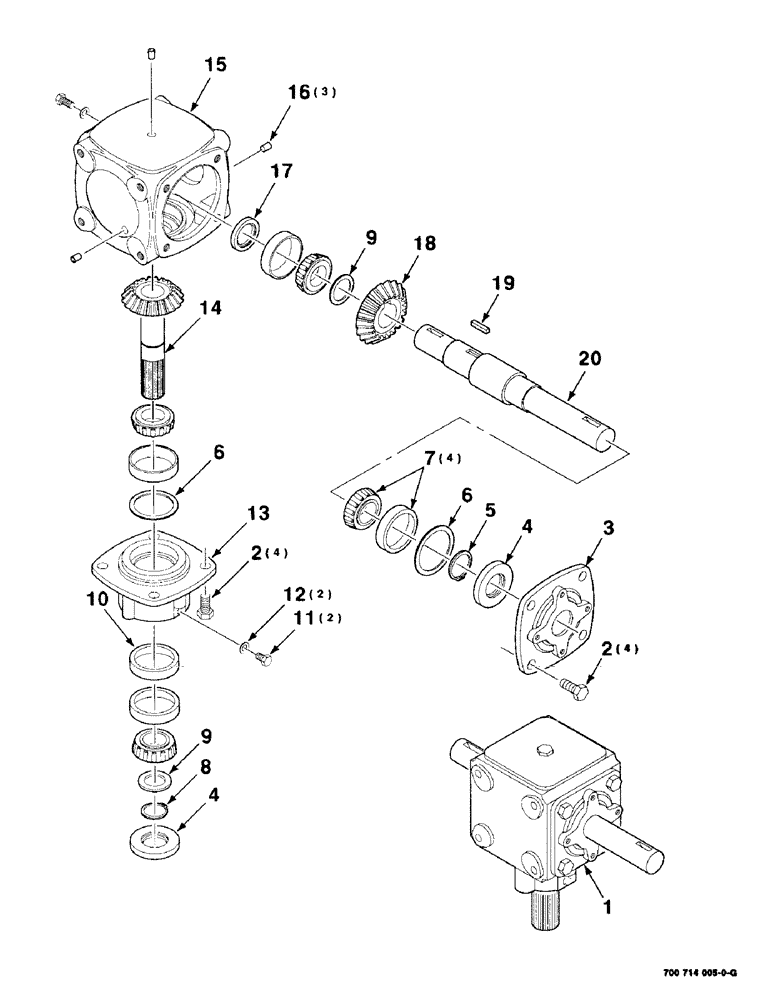

Схема запчастей Case IH 8315 - (2-30) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSEMBLY COMPLETE (09) - CHASSIS
14
10
2
3
6
19
8
16
18
13
2
20
9
7
4
17
11
15
12
9
6
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

700714005C

CORE-GEARBOX

Return Number, Gearbox, Outer

1шт.

2

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

3

700714120

COVER

- gearbox

1шт.

4

700712389

OIL SEAL

- oil

2шт.

5

700712375

SNAP RING

RING - retaining

1шт.

6

700712378

SHIM

PACK 71.7 MM

2шт.

7

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY (Tapered)

4шт.

8

700712388

RING

- retaining

1шт.

9

700712360

SHIM KIT

SHIM PACK 48 MM

2шт.

10

700713541

SPACER

1шт.

11

700714123

BOLT

M8 X 10

2шт.

12

700714122

WASHER

- copper

2шт.

13

700713543

EXTENSION

1шт.

14

700713542

SHAFT

- pinion

1шт.

15

700713539

CASTING

- T2

1шт.

16

700712200

PLUG

- 3/8 gas

3шт.

17

700712392

OIL SEAL

- oil

1шт.

18

700713536

GEAR

Z19 M5

1шт.

19

700713540

KEY

- straight 10 x 8 x 30

1шт.

20

700713544

SHAFT

1шт.
