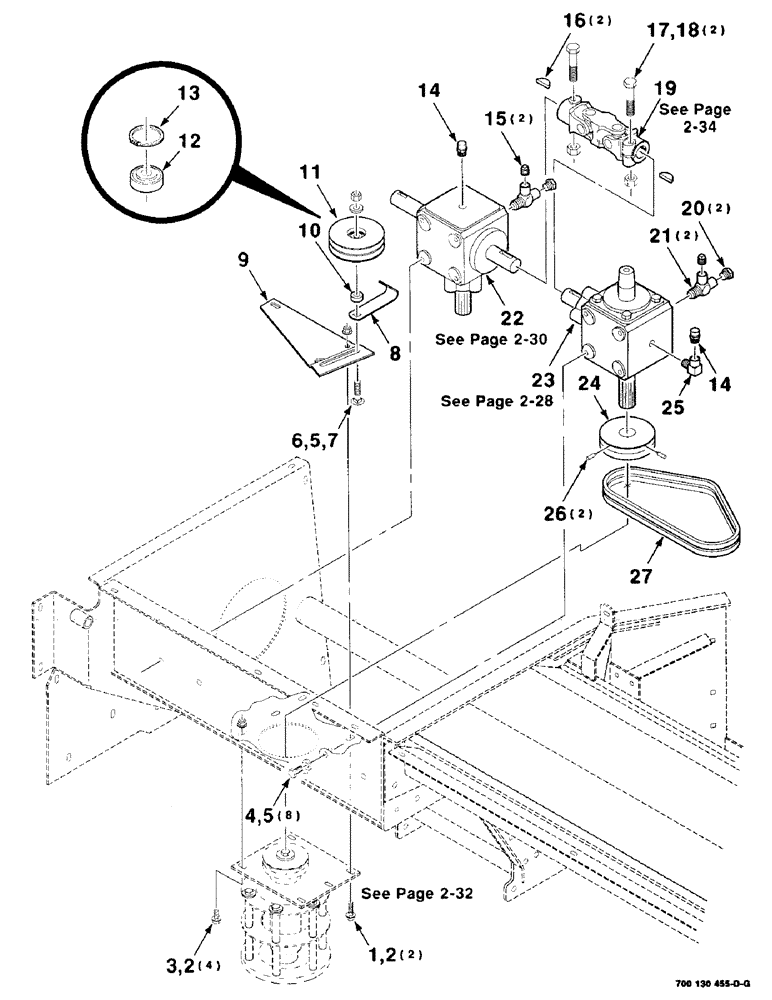

Запчасти Case IH 8315 (2-26) - HEADER DRIVE ASSEMBLY, SECONDARY RIGHT, S.N. CFH0104076 AND LATER (09) - CHASSIS

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

9шт.

6

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

700130619

TENSIONER

1шт.

9

700130654

MOUNTING PARTS

MOUNTING - idler

1шт.

10

378604

SPACER

1шт.

11

700130650

FRONT IDLER

IDLER ASM. (Includes items 12 & 13)

1шт.

12

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

- cylindrical

1шт.

13

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

14

700712886

BREATHER

2шт.

15

46490

PLUG

2шт.

16

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

17

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

18

425-1010

NUT,5/8"-11, G5

2шт.

19

700713399

JOINT

U-JOINT ASSEMBLY

1шт.

20

700714032

GAUGE

- view

2шт.

21

7046113

TEE

- male, run

2шт.

22

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY - outer

1шт.

22

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

22

700714005C

CORE-GEARBOX

Return Number, Gearbox, Outer

1шт.

23

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY - inner

1шт.

23

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

23

700714040C

CORE-GEARBOX

Return Number, Gearbox, Inner

1шт.

24

700130123

SHEAVE

Single Groove

1шт.

25

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

26

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS

2шт.

27

700714715

SET OF BELTS,891.50 mm L

Matched, V-Belt 891.50 mm L

1шт.
