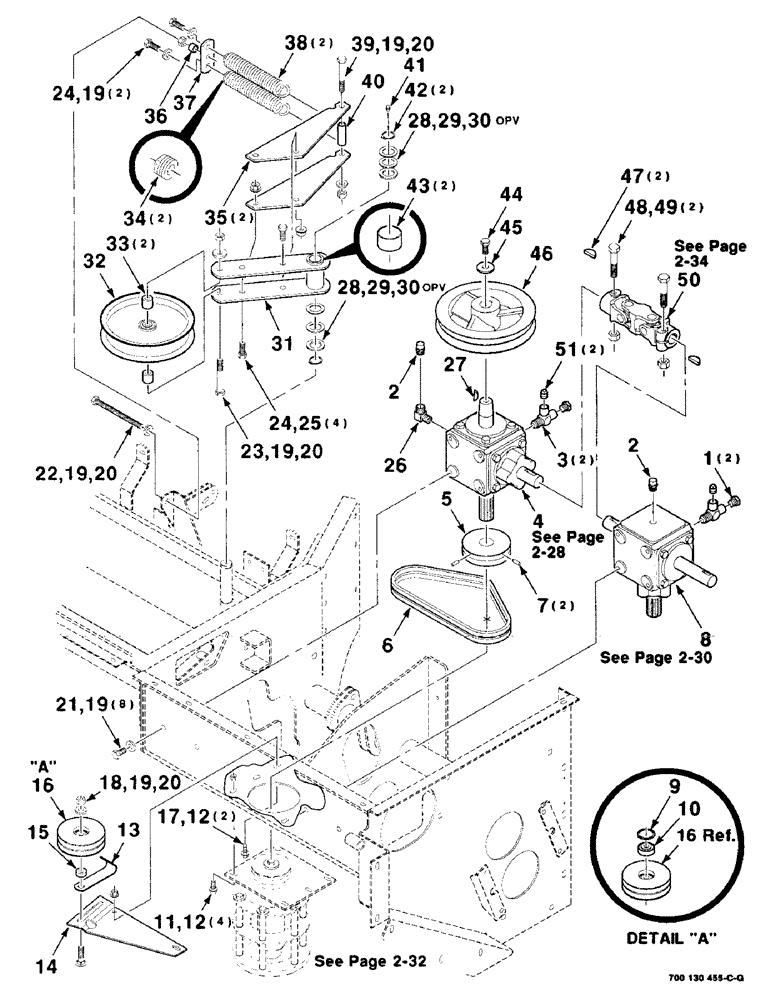

Запчасти Case IH 8315 (2-22) - HEADER DRIVE ASSEMBLY, SECONDARY LEFT, S.N. CFH0104076 AND LATER (09) - CHASSIS

1

700714032

GAUGE

- view

2шт.

2

700712886

BREATHER

2шт.

3

7046113

TEE

- male, run

2шт.

4

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY - inner

1шт.

4

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

4

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

5

700130652

SHEAVE

1шт.

6

700714715

SET OF BELTS,891.50 mm L

Matched, V-Belt 891.50 mm L

1шт.

7

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS

2шт.

8

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY - outer

1шт.

8

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

8

700714005C

CORE-GEARBOX

Return Number, Gearbox, Outer

1шт.

9

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

10

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

- cylindrical

1шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

13

700130619

TENSIONER

1шт.

14

700130653

MOUNTING PARTS

MOUNTING - idler, left

1шт.

15

378604

SPACER

1шт.

16

700130650

FRONT IDLER

IDLER ASM. (Includes items 9 & 10)

1шт.

17

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

18

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

19

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

14шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

22

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

1шт.

23

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

25

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

26

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

27

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

28

52217

WASHER

1-1/8 X 18 GAUGE NRMB

2шт.

29

52522

BUSHING

1-1/8 X 10 GAUGE NRMB

2шт.

30

495-81197

WASHER,1 3/16" x 1 3/4" x .065"

1-1/8 X 14 GAUGE NRMB

2шт.

31

700127095

ARM

WA - idler (Includes item 43)

1шт.

32

NLS

NO LONGER SERVICED

IDLER - flat

1шт.

33

700100892

SPACER

2шт.

34

6189989

PLUG

- spring

2шт.

35

700130548

MOUNTING PARTS

MOUNTING - spring

2шт.

36

L57298

BUSHING

SPACER

1шт.

37

700130549

MOUNTING PARTS

MOUNTING - spring

1шт.

38

6189971

SPRING

ASSEMBLY (Includes item 34)

2шт.

39

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

40

700113876

SPACER

1шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

42

740761

SNAP RING

RING - retainer

2шт.

43

7852023

BUSHING

- bronze

2шт.

44

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2-20 X 1-1/4 C

1шт.

45

6181994

WASHER

- special

1шт.

46

700130550

SHEAVE

- disc drive

1шт.

47

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

48

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

49

425-1010

NUT,5/8"-11, G5

2шт.

50

700713399

JOINT

U-JOINT ASSEMBLY

1шт.

51

46490

PLUG

2шт.
