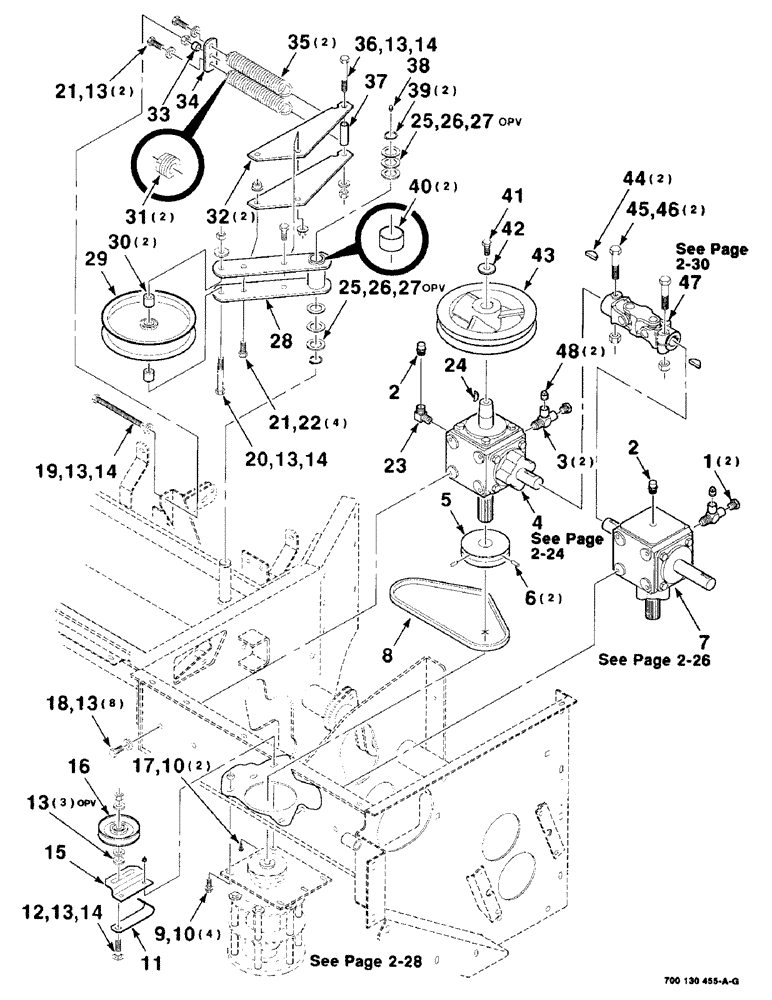

Запчасти Case IH 8315 (2-20) - HEADER DRIVE ASSEMBLY, SECONDARY LEFT, S.N. CFH0104001 THRU CFH0104075 (09) - CHASSIS

1

700714032

GAUGE

- view

2шт.

2

700712886

BREATHER

2шт.

3

7046113

TEE

- male, run

2шт.

4

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY - inner

1шт.

4

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

4

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

5

700130123

SHEAVE

1шт.

Ref: #5 - If dealer has a double grooved pulley - part 700130652 was a opition on the 8315.

1шт.

6

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS

2шт.

7

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY - outer

1шт.

7

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

7

700714005C

CORE-GEARBOX

Return Number, Gearbox, Outer

1шт.

8

2700102

BELT

V-BELT

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

11

700130619

TENSIONER

1шт.

12

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

13

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

17шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

15

700130125

MOUNTING PARTS

MOUNTING - idler

1шт.

16

853820

KNIFE

IDLER - flat

1шт.

17

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

19

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

1шт.

20

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

23

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

24

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

25

52217

WASHER

1-1/8 X 18 GAUGE NRMB

2шт.

26

52522

BUSHING

1-1/8 X 10 GAUGE NRMB

2шт.

27

495-81197

WASHER,1 3/16" x 1 3/4" x .065"

1-1/8 X 14 GAUGE NRMB

2шт.

28

700127095

ARM

WA - idler (Includes item 40)

1шт.

29

54072

PULLEY

IDLER - flat

1шт.

30

700100892

SPACER

2шт.

31

6189989

PLUG

- spring

2шт.

32

700130548

MOUNTING PARTS

MOUNTING - spring

2шт.

33

L57298

BUSHING

SPACER

1шт.

34

700130549

MOUNTING PARTS

MOUNTING - spring

1шт.

35

6189971

SPRING

ASSEMBLY (Includes item 31)

2шт.

36

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

37

700113876

SPACER

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

39

740761

SNAP RING

RING - retainer

2шт.

40

7852023

BUSHING

- bronze

2шт.

41

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2-20 X 1-1/4 C

1шт.

42

6181994

WASHER

- special

1шт.

43

700130550

SHEAVE

- disc drive

1шт.

44

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

45

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

46

425-1010

NUT,5/8"-11, G5

2шт.

47

700713399

JOINT

U-JOINT ASSEMBLY

1шт.

48

46490

PLUG

2шт.
