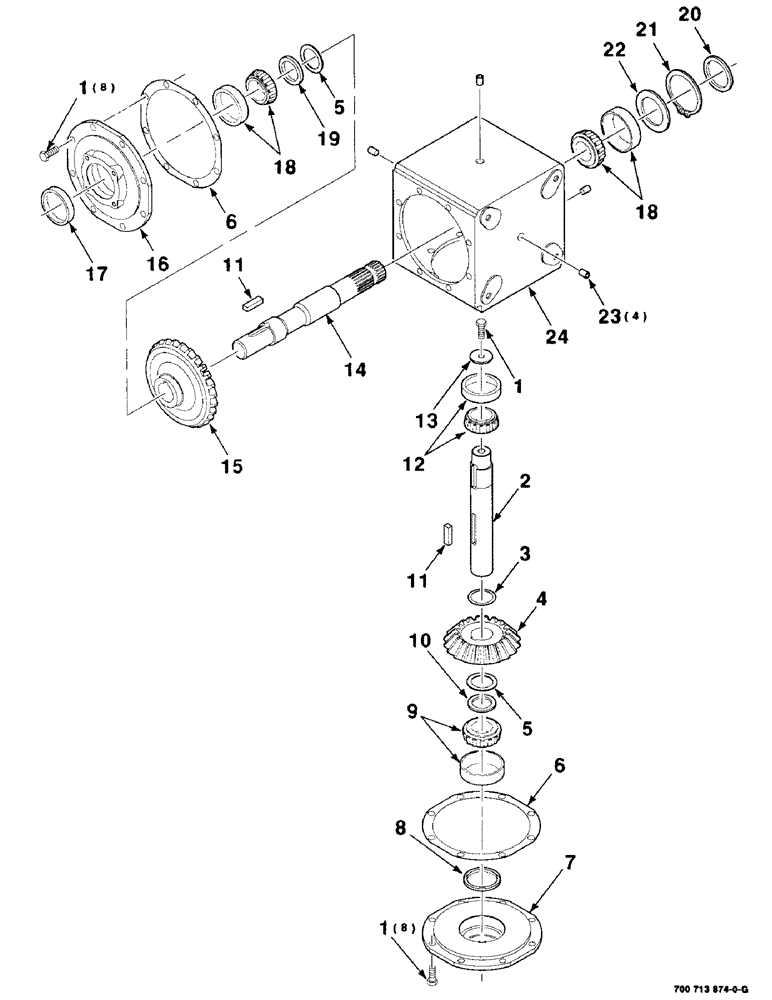

Запчасти Case IH 8315 (2-18) - GEARBOX ASSEMBLY, 700713874 GEARBOX ASSEMBLY COMPLETE (09) - CHASSIS

700713874

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

700726848R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

700726848C

CORE-GEARBOX

Return No, GEARBOX

1шт.

1

700712366

SCREW

M10 X 1.5 X 22 FTHCS GR8

17шт.

2

700712363

SHAFT

1шт.

3

700712354

SHIM

- pack

1шт.

4

700712368

PINION

1шт.

5

700712360

SHIM KIT

SHIM - pack

2шт.

6

700712367

GASKET

2шт.

7

700712377

COVER

- gearbox

1шт.

8

700712362

SEAL

- double, lip

1шт.

9

700712381

BEARING

ASSEMBLY - tapered

1шт.

10

700712379

SPACER

1шт.

11

700712370

KEY

10 X 8 X 35 KEY

2шт.

12

700712353

BEARING

ASSEMBLY - tapered

1шт.

13

700712371

WASHER

- blank

1шт.

14

700713965

SHAFT

1шт.

15

700712355

GEAR

1шт.

16

700712365

COVER

1шт.

17

700713967

CAP

1шт.

18

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

2шт.

19

700712373

SPACER

1шт.

20

700712389

OIL SEAL

- oil

1шт.

21

700712375

SNAP RING

RING - retaining

1шт.

22

700712378

SHIM

- pack

1шт.

23

700712200

PLUG

4шт.

24

700712369

CASING

- gearbox

1шт.
