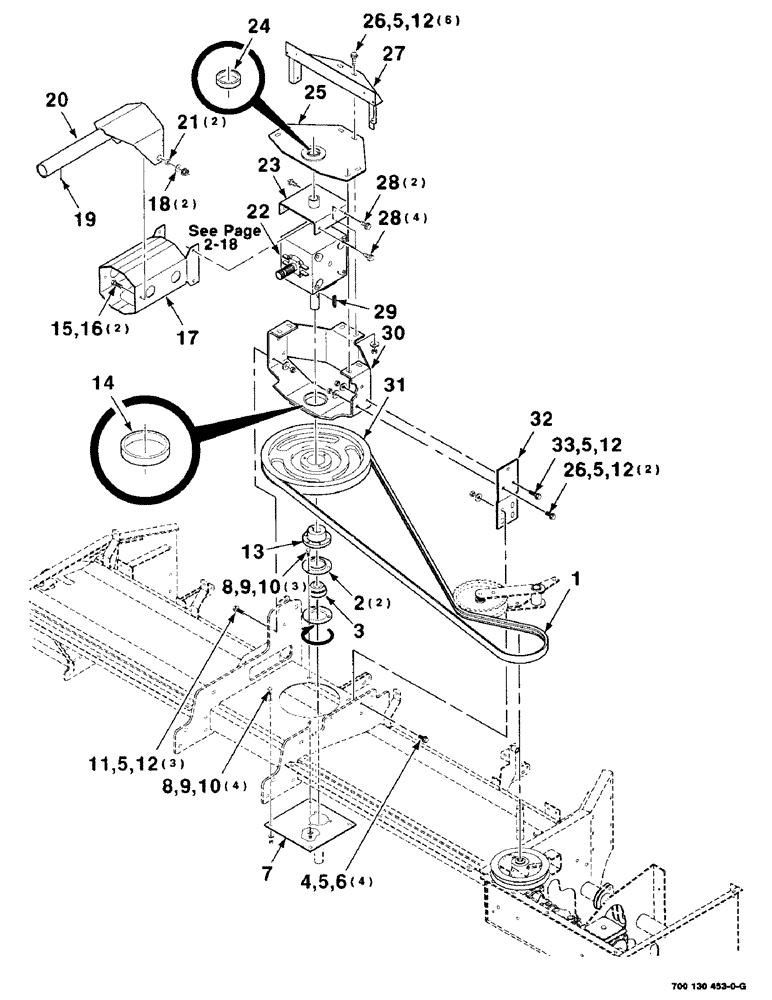

Запчасти Case IH 8315 (2-16) - HEADER DRIVE ASSEMBLY, MAIN (09) - CHASSIS

1

700711852

V-BELT,4292.6 mm L, 2 Ribs

1шт.

2

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

3

611583R91

BALL BEARING

BEARING - spherical

1шт.

4

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2-20 X 1-1/4 C

4шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

16шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

700127081

LARGE PLATE

PLATE - mount, bearing

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

10

425-106

NUT,3/8"-16, Cl 5

7шт.

11

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

3шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

13

700711854

BUSHING

- tapered

1шт.

14

700711863

BRONZE BUSHING

BEARING - bronze

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

17

700127089

SUPPORT

WA - shield

1шт.

18

385625

WASHER

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

700127359

SUPPORT

WA - rear

1шт.

21

6522940

SPACER

2шт.

22

700713874

GEARBOX ASSY

GEARBOX

1шт.

22

700726848R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

22

700726848C

CORE-GEARBOX

Return No, GEARBOX

1шт.

23

700127082

SUPPORT

WA - gearbox

1шт.

24

8052391

BRONZE BUSHING

BUSHING - bronze

1шт.

25

700127086

PIVOT

WA - upper (Includes item 24)

1шт.

26

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

8шт.

27

700127032

SUPPORT

WA - cage

1шт.

28

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

29

586879R1

KEY

5/16 X 2 KEY

1шт.

30

700127077

SUPPORT

WA - gearbox (Includes item 14)

1шт.

31

700130537

SHEAVE

- main, 2B-PB

1шт.

32

700127088

LARGE PLATE

PLATE - support

1шт.

33

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2-13 X 1-3/4 HFS GR8

1шт.
