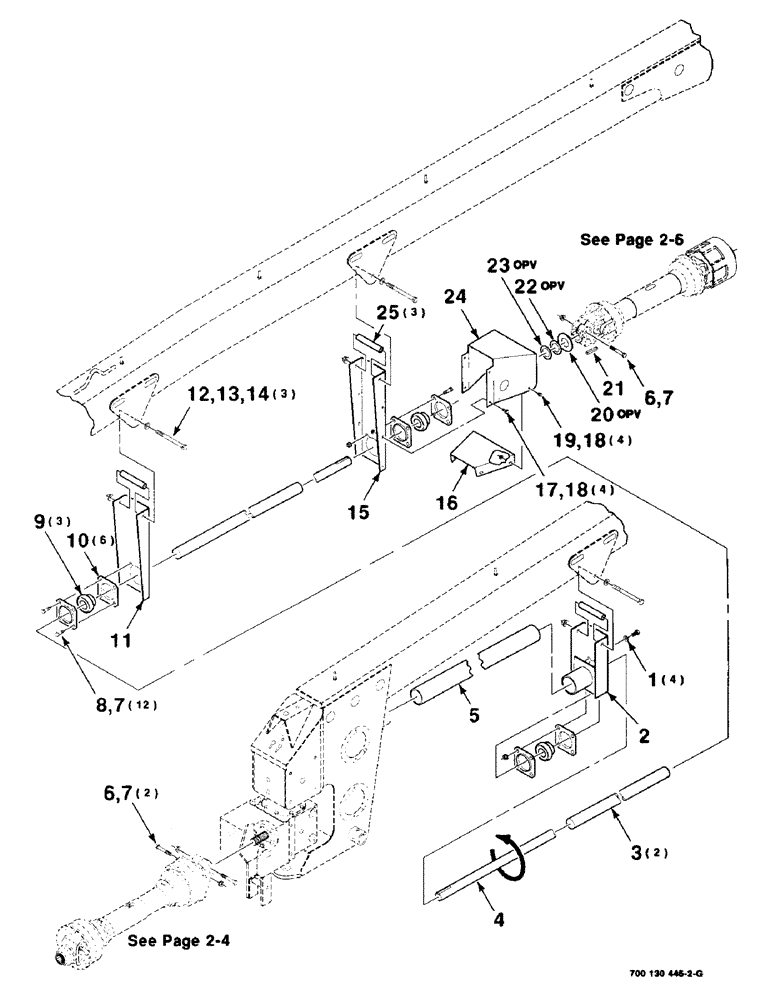

Запчасти Case IH 8315 (2-02) - DRIVELINE ASSEMBLY (09) - CHASSIS

1

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

2

700130495

SUPPORT

WA - bearing, front

1шт.

3

700130493

TUBE

- shield

2шт.

4

700130491

SHAFT

- drive

1шт.

5

700130506

PIPE

- shield

1шт.

6

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

3шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

15шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

9

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

3шт.

Item#9., P/N 663559R91 DOES NOT INCLUDE THE COLLAR.

1шт.

FOR THE COLLAR, ORDER P/N 455112R11.

1шт.

10

1307583C1

FLANGED BEARING

- bearing

6шт.

11

700130494

SUPPORT

- bearing, ctr

1шт.

12

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

3шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

14

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

3шт.

15

700127350

SUPPORT

- bearing, rear

1шт.

16

700129998

SHIELD

- bottom

1шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

20

740522

WASHER

1-1/2 X 10 GAUGE WRMB

1шт.

21

Q55

KEY,3/8" Sq x 2", Par

3/8 X 2

1шт.

22

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

1шт.

23

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

1шт.

24

700127352

SHIELD

- rear

1шт.

25

700116056

SPACER

3шт.
