(8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700713583 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE

Запчасти Case IH 8315 (8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700713583 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS

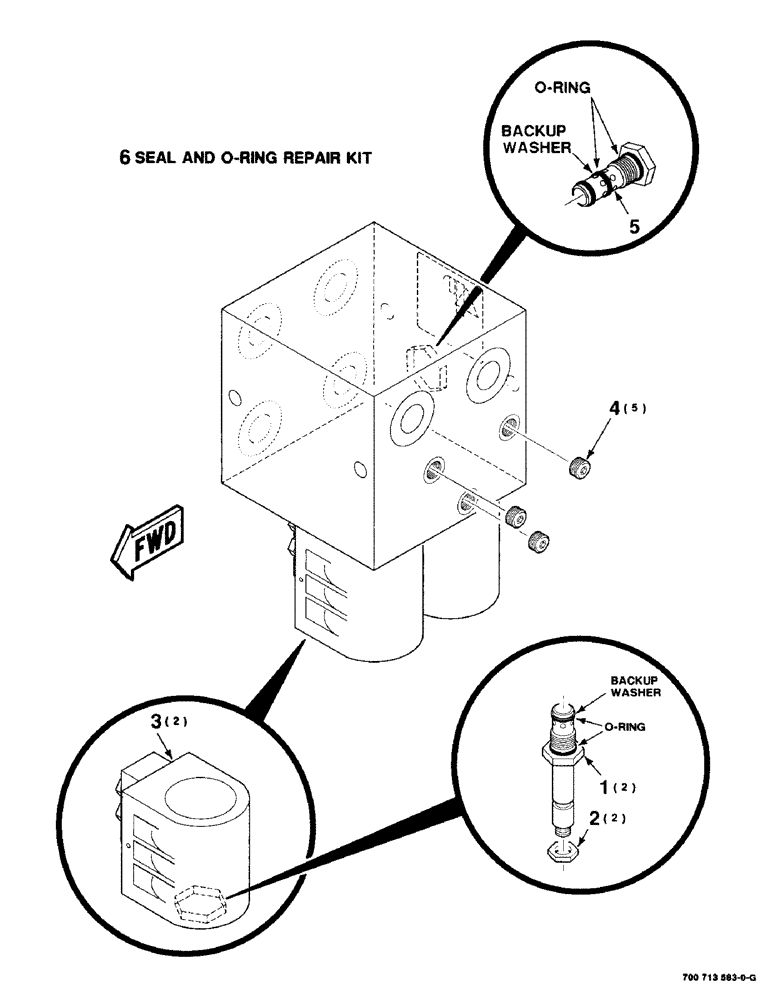

Схема запчастей Case IH 8315 - (8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700713583 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS
2
4
3
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713583

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

1шт.

1

700712819

CARTRIDGE

3W 2P VALVE

2шт.

2

700712821

NUT

HEX NUT

2шт.

3

700712921

COIL

- 12VDC DP encap

2шт.

4

046797

PLUG

1/8 NPT PLUG

5шт.

5

700713587

VALVE

P.O. CHECK VALVE

1шт.

6

700712678

KIT

SEAL AND O-RING REPAIR KIT

1шт.
