(8-10) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712022 HYDR. CYLD. COMPLETE,3" BORE X 8" STROKE

Запчасти Case IH 8315 (8-10) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712022 HYDR. CYLD. COMPLETE,3" BORE X 8" STROKE (08) - HYDRAULICS

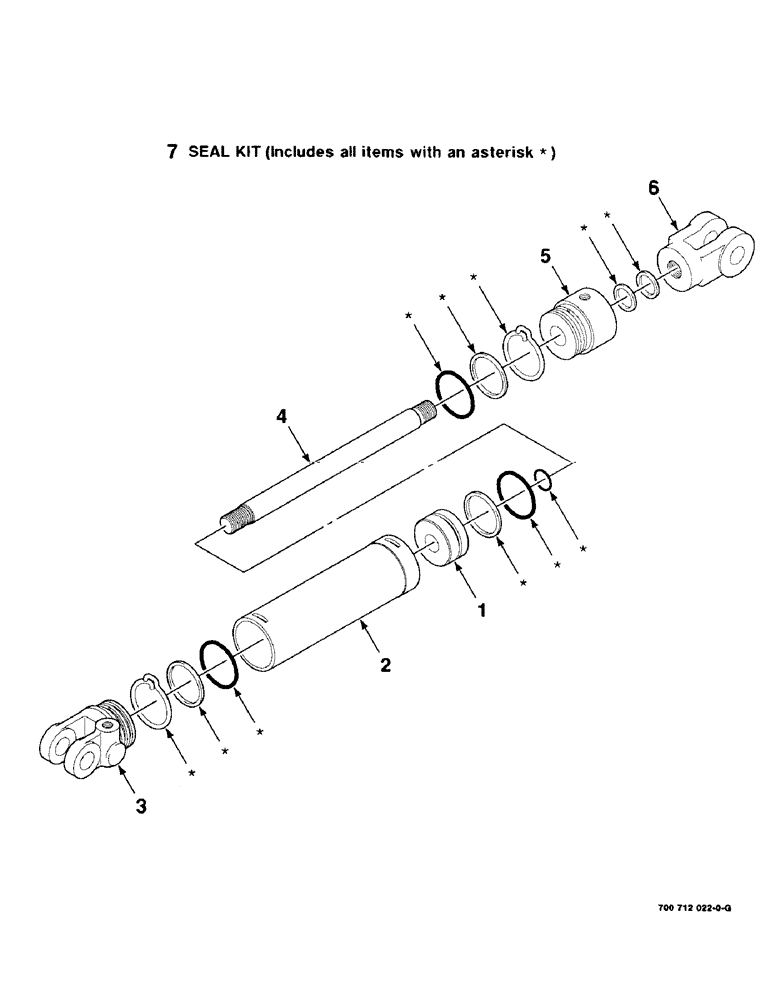

Схема запчастей Case IH 8315 - (8-10) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712022 HYDR. CYLD. COMPLETE,3" BORE X 8" STROKE (08) - HYDRAULICS
4
5
7
1
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712022

CYLINDER

HYDRAULIC CYLINDER COMPLETE (3" bore by 8" stroke)

1шт.

1

H436684

JACK PISTON

PISTON - cylinder

1шт.

2

102690A1

TUBE

BARREL

1шт.

3

700700105

HEAD

- cylinder

1шт.

4

102692A1

ROD

- piston

1шт.

5

102686A1

GLAND

BEARING - cylinder rod

1шт.

6

50-2087T1

END

CLEVIS - rod end

1шт.

7

700710260

SEAL KIT

KIT

1шт.
