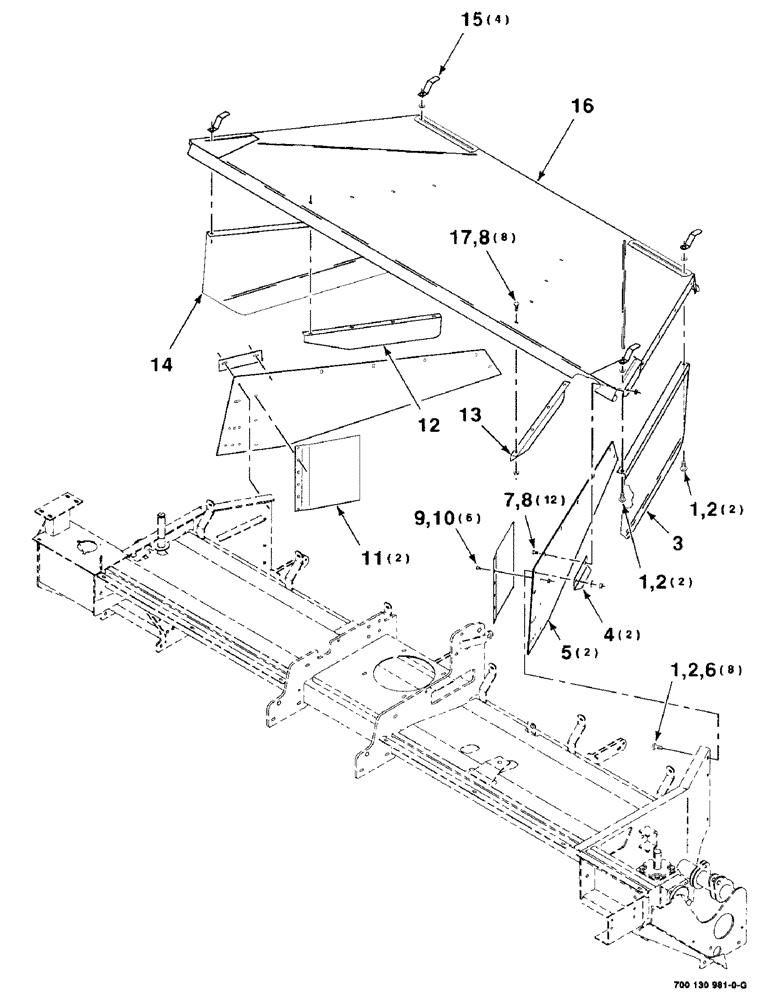

Запчасти Case IH 8312 (7-36) - FORMING SHIELDS ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

12шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

3

700127393

SHIELD

- forming, left

1шт.

4

700127063

REINFORCEMENT

2шт.

5

700127392

SUPPORT

- side

2шт.

6

425-106

NUT,3/8"-16, Cl 5

8шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

20шт.

9

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

11

700128253

SHIELD

2шт.

12

700127396

FIN

- right

1шт.

13

700127395

FIN

- left

1шт.

14

700127394

SHIELD

- forming, right

1шт.

15

6232532

NUT

ASSEMBLY

4шт.

16

700127387

SHIELD

WA - top

1шт.

17

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.
