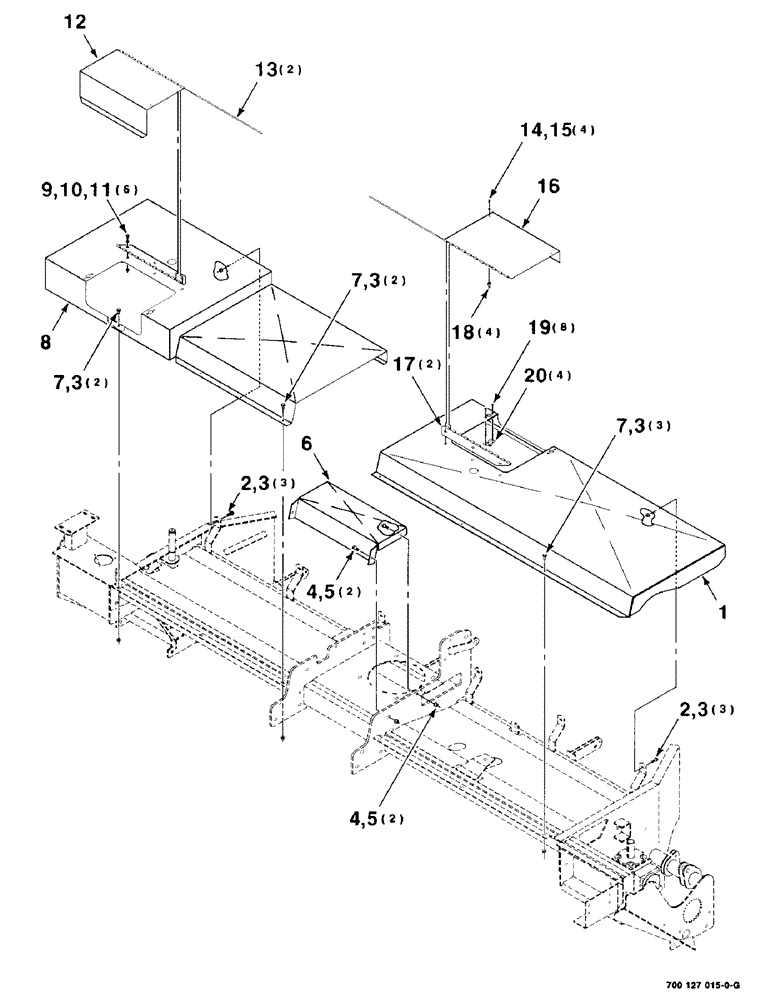

Запчасти Case IH 8312 (7-34) - SHIELDS ASSEMBLY, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700127366

SHIELD

WA - top, left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

13шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

700127375

SHIELD

- front, lower

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

8

700127370

SHIELD

WA - top, right

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

12

700127377

SHIELD

- right

1шт.

13

700127355

PIN

- hinge

2шт.

14

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

#10-32 X 1/2 CRPHMS

4шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

16

700127376

SHIELD

- left

1шт.

17

700127120

HINGE

2шт.

18

1960762C1

STUD

BALL STUD - latch

4шт.

19

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 X 1/2 CRTHTFTS

8шт.

20

1960763C3

LATCH

RECEIVER - stud

4шт.
