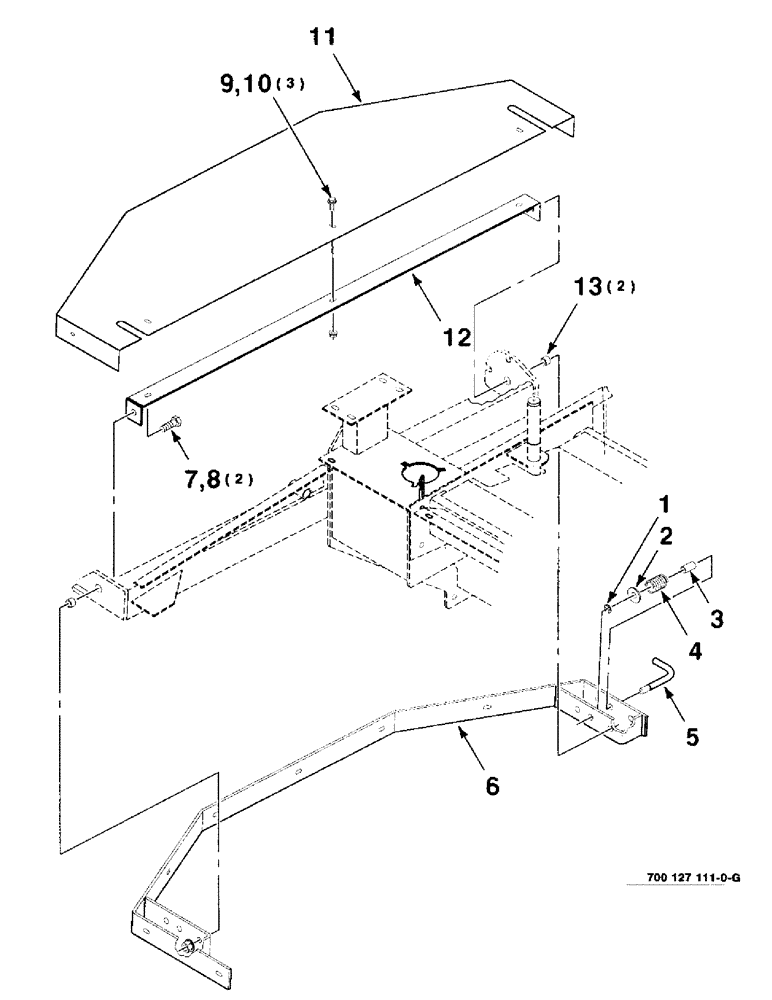

Запчасти Case IH 8312 (7-30) - SHIELD ASSEMBLY, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700711833

RING

- retaining, extension

1шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

3

700127237

SPACER

1шт.

4

8058000

SPRING

1шт.

5

700127210

PIN

1шт.

6

700127196

SUPPORT

WA - shield

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

11

700127229

SHIELD

- right

1шт.

12

700127236

SUPPORT

- shield, side

1шт.

13

6243943

BUSHING

SPACER

2шт.
