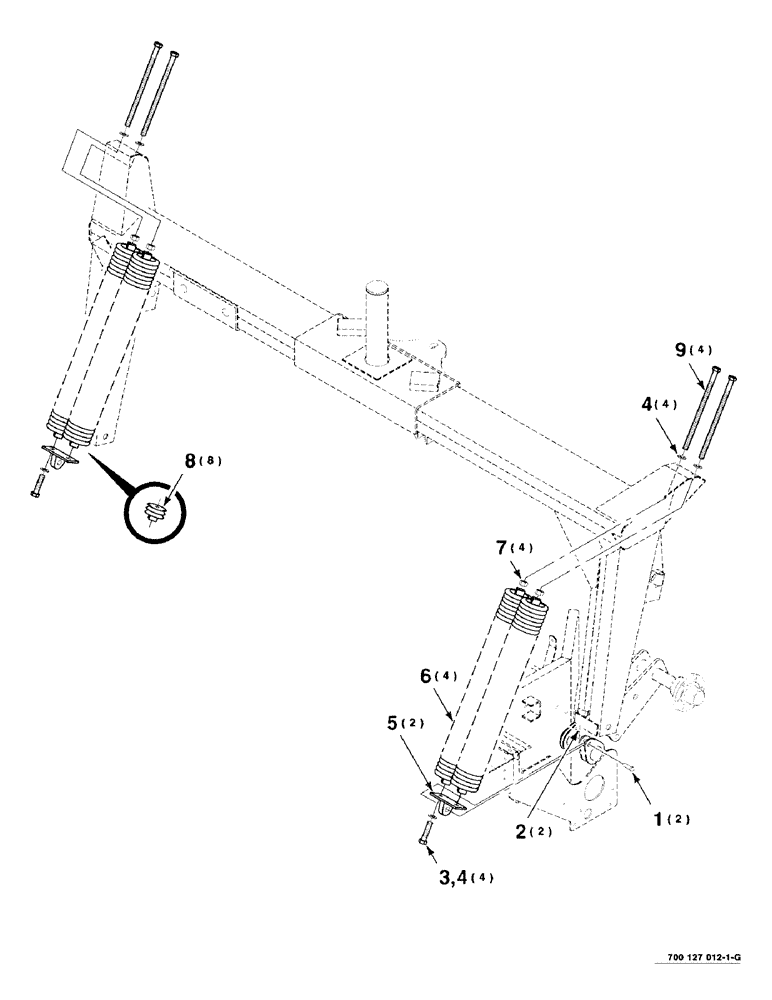

Запчасти Case IH 8312 (7-16) - FLOTATION ASSEMBLY, UPPER (58) - ATTACHMENTS/HEADERS

1

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

2

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

4

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

5

700127283

MOUNTING PARTS

MOUNTING WA

2шт.

6

700127280

SPRING

ASSEMBLY (includes item 8)

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

264424

PLUG

- spring

8шт.

9

8701864

BOLT,Hex, 5/8" - 11 x 15", Gr 5, Full Thd

5/8-11 X 15 BOLT

4шт.
