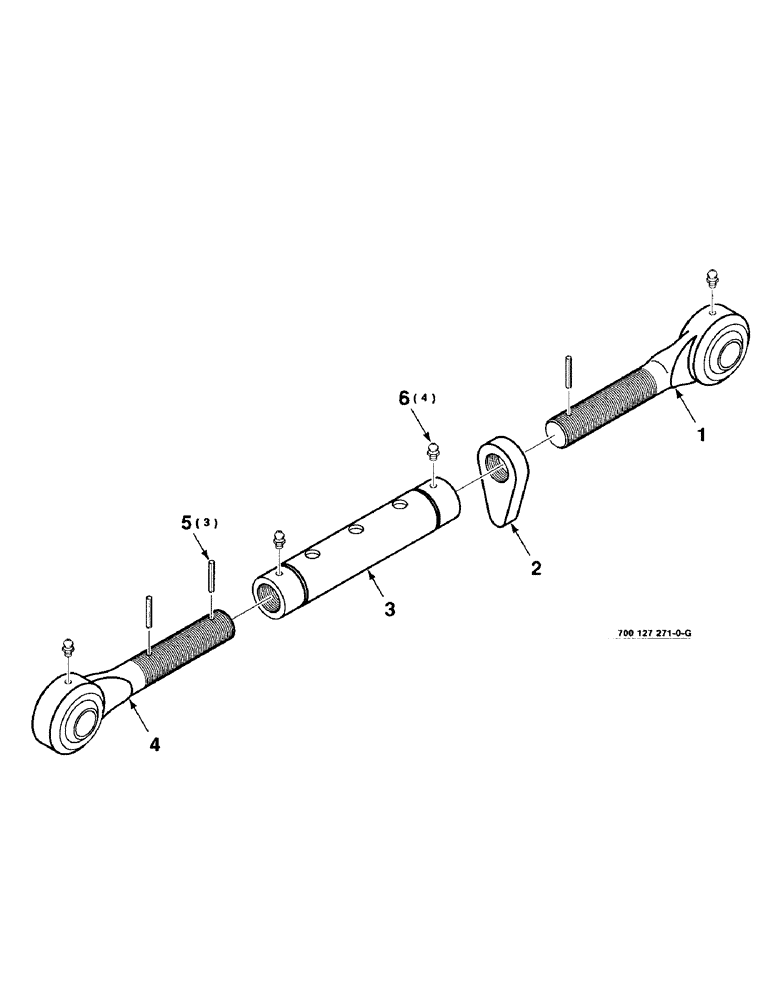

Запчасти Case IH 8312 (7-12) - LINK ASSEMBLY, 700127271 LINK ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

700127271

LINK

ASSEMBLY COMPLETE

1шт.

1

700127275

LINK

WA - right hand thread

1шт.

2

700117684

HANDLE

- lock, right hand thread

1шт.

3

700127272

TUBE

WA - center

1шт.

4

700127278

LINK

WA - left hand thread

1шт.

5

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

3шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.
