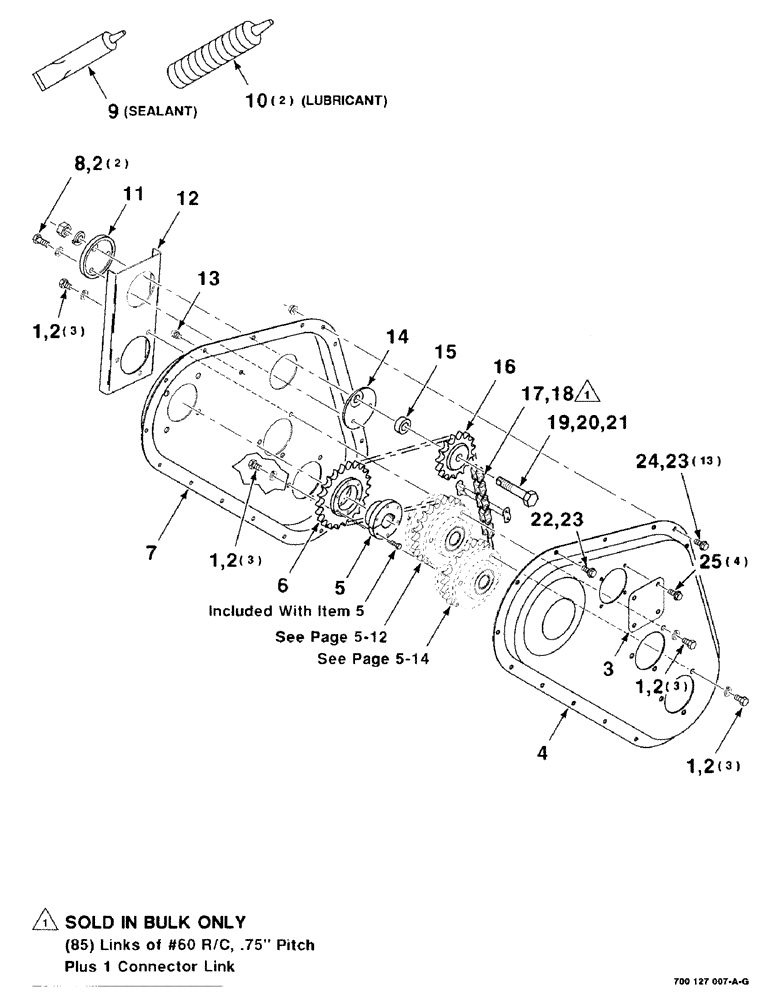

Запчасти Case IH 8312 (5-10) - CHAINBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

2

492-11038

LOCK WASHER,3/8"

14шт.

3

700111572

COVER

1шт.

4

700127046

LARGE PLATE

PLATE - outer

1шт.

5

7747280

ASSEMBLY

BUSHING - taper (includes 1/4-20 x 1-3/8 C)

1шт.

6

700708703

SPROCKET ASSY.

SPROCKET - 60B22 tooth

1шт.

7

700127045

LARGE PLATE

PLATE - inner

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

700707823

SEALANT

- 12 oz tube

2шт.

10

B505154

LUBRICANT

2шт.

11

700110612

COVER

- cam

1шт.

12

700127052

REINFORCEMENT

1шт.

13

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

14

700110613

CAM

1шт.

15

700126600

SPACER

1шт.

16

541857R92

SPROCKET,15T

- idler, #60, 15 tooth

1шт.

17

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

18

241-1316

LINK,19.05mm Pitch

CONNECTOR LINK - #60 R/C

1шт.

19

700118295

SCREW

- special

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

425-1010

NUT,5/8"-11, G5

1шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

14шт.

24

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

13шт.

25

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

4шт.
