(5-08) - LOWER JACKSHAFT U-JOINT ASSY, 700711842 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8312 (5-08) - LOWER JACKSHAFT U-JOINT ASSY, 700711842 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

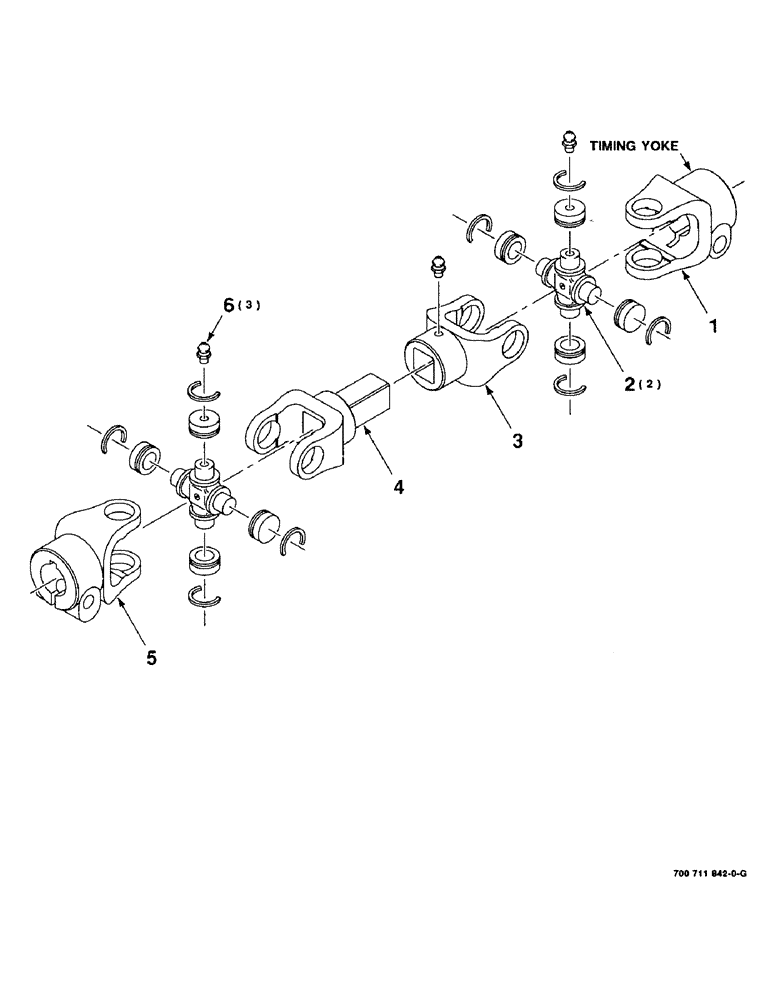

Схема запчастей Case IH 8312 - (5-08) - LOWER JACKSHAFT U-JOINT ASSY, 700711842 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
5
4
3
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711842

FLEXIBLE JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700705535

YOKE

- clamp (timing)

1шт.

2

700711843

FLEXIBLE JOINT

KIT - cross and bearing

2шт.

3

700708949

FORK

YOKE - slip

1шт.

4

700708948

FORK

YOKE AND SHAFT

1шт.

5

757716

CLAMP

YOKE - clamp

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

3шт.
