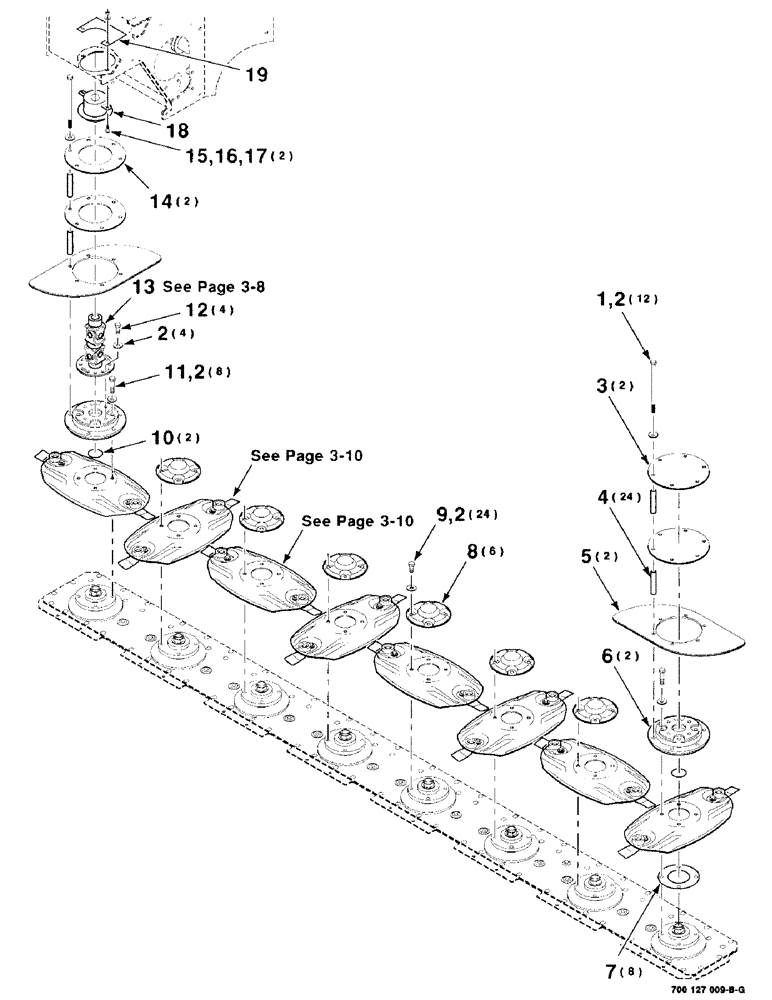

Запчасти Case IH 8312 (3-06) - CUTTER DISC ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

12шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

48шт.

3

700127067

PLATE

RING - cage

2шт.

4

6559314

SPACER

24шт.

5

700127380

SLINGER

2шт.

6

700127059

ADAPTER

- disc drive

2шт.

7

700128273

SHIM

(S.N. CFH0083611 Thru CFH0083845)

8шт.

8

700127062

CAP

- disc

6шт.

9

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

24шт.

10

7722440

PLUG

2шт.

11

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

8шт.

12

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

M12 X 1.25 X 30 C

4шт.

13

700713411

FLEXIBLE JOINT

U-JOINT, timing

1шт.

14

700127061

RING

- cage

2шт.

15

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

700127064

TUBE

WA - shield

1шт.

19

700127038

COVER

(S.N. CFH0083611 and later)

1шт.
