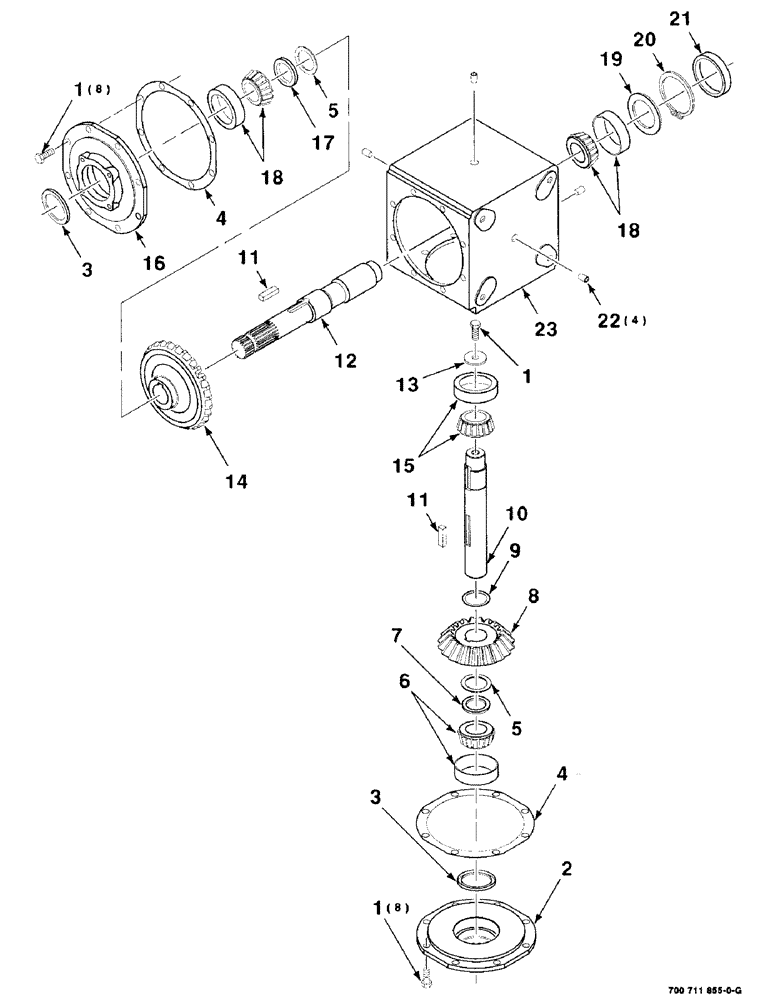

Запчасти Case IH 8312 (2-22) - GEARBOX ASSEMBLY, 700711855 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

700711855

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

700711855R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

700711855C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

700712366

SCREW

M10 X 1.5 X 22 FTHCS GR8

17шт.

2

700712377

COVER

- gearbox

1шт.

3

700712362

SEAL

- double, lip

2шт.

4

700712367

GASKET

2шт.

5

700712360

SHIM KIT

SHIM - pack

2шт.

6

700712381

BEARING

ASSEMBLY - tapered

1шт.

7

700712379

SPACER

1шт.

8

700712368

PINION

1шт.

9

700712354

SHIM

- pack

1шт.

10

700712363

SHAFT

1шт.

11

700712370

KEY

10 X 8 X 35 KEY

2шт.

12

700712376

SHAFT

1шт.

13

700712371

WASHER

- blank

1шт.

14

700712355

GEAR

1шт.

15

700712353

BEARING

ASSEMBLY - tapered

1шт.

16

700712365

COVER

1шт.

17

700712373

SPACER

1шт.

18

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

2шт.

19

700712378

SHIM

- pack

1шт.

20

700712375

SNAP RING

RING - retaining

1шт.

21

700712374

CAP

1шт.

22

700712200

PLUG

4шт.

23

700712369

CASING

- gearbox

1шт.
