(2-18) - U-JOINT ASSEMBLY, 700715629 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8312 (2-18) - U-JOINT ASSEMBLY, 700715629 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

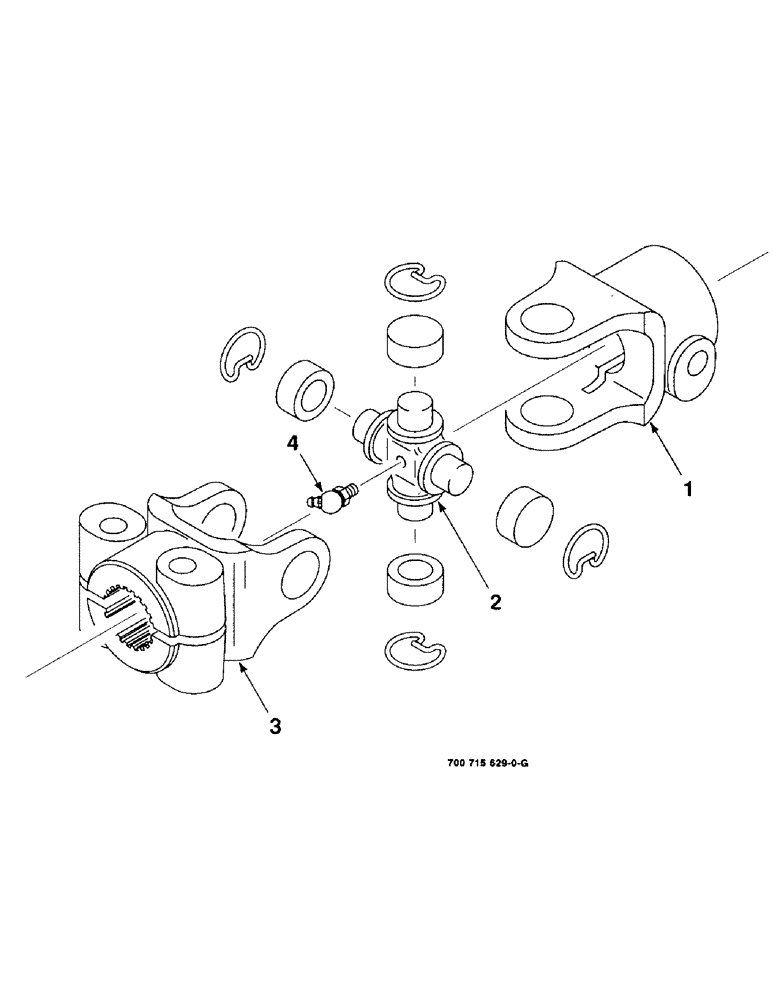

Схема запчастей Case IH 8312 - (2-18) - U-JOINT ASSEMBLY, 700715629 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715629

FORK

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700715650

CLAMP

- yoke

1шт.

2

845198

KIT

CROSS AND BEARING KIT (includes item 4)

1шт.

3

700715644

FORK

CLAMP - yoke

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 7/8 65 DEGREE ZERK

1шт.
