(2-16) - GEARBOX ASSEMBLY, DOUBLE, 700713871 GEARBOX ASSEMBLY COMPLETE

Запчасти Case IH 8312 (2-16) - GEARBOX ASSEMBLY, DOUBLE, 700713871 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

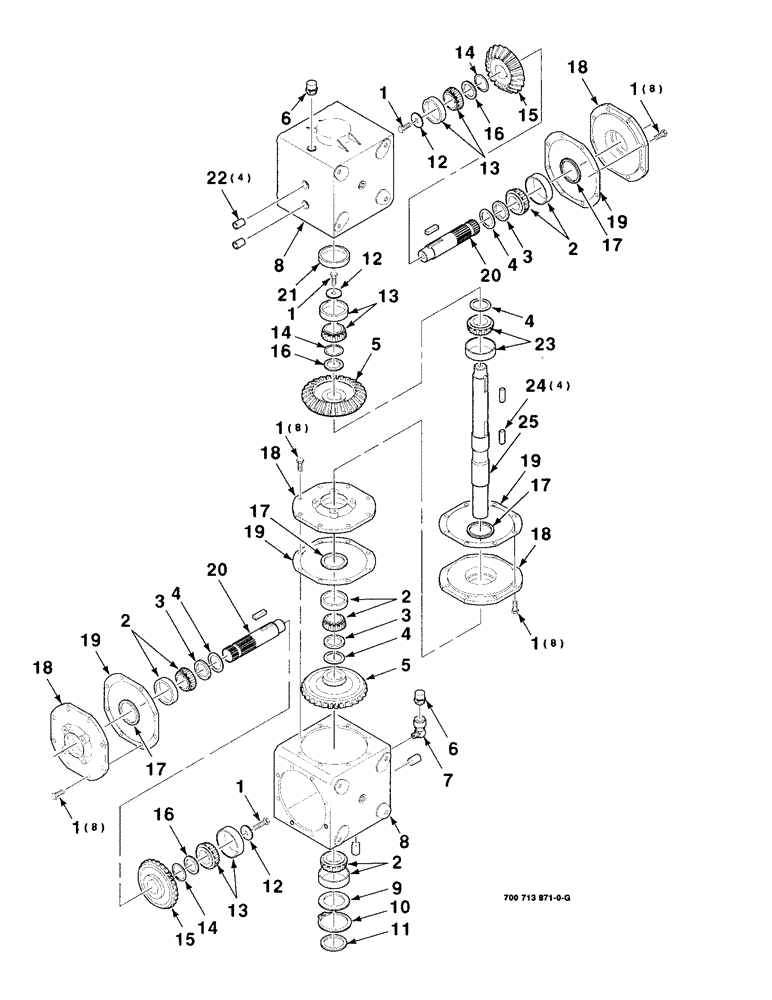

Схема запчастей Case IH 8312 - (2-16) - GEARBOX ASSEMBLY, DOUBLE, 700713871 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
7
14
19
21
4
19
18
23
22
10
18
16
8
4
3
13
11
20
15
12
17
1
1
9
2
13
18
16
3
13
14
1
19
12
18
20
1
1
8
2
6
2
15
16
17
5
5
1
17
12
25
1
19
17
6
4
2
14
4
24
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713871

GEARBOX ASSY

GEARBOX ASSEMBLY - double complete

1шт.

700713871R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

700713871C

CORE-GEARBOX

Return Number, Gearbox, double

1шт.

1

700712366

SCREW

M10 X 1.5 X 22 FTHCS GR8

35шт.

2

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

4шт.

3

700712373

SPACER

3шт.

4

700712360

SHIM KIT

PACK - shim

4шт.

5

700712355

GEAR

2шт.

6

700712886

BREATHER

2шт.

7

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

90 DEGREE ELBOW

1шт.

8

700713947

CASING

- gearbox

2шт.

9

700712378

SHIM

PACK - shim

1шт.

10

700712375

SNAP RING

RING - retaining

1шт.

11

700712389

OIL SEAL

- oil

1шт.

12

700712371

WASHER

- blank

3шт.

13

700712353

BEARING

ASSEMBLY - tapered

3шт.

14

700712354

SHIM

PACK - shim

3шт.

15

700712368

PINION

2шт.

16

700712379

SPACER

3шт.

17

700712362

SEAL

- double, lip

4шт.

18

700712365

COVER

4шт.

19

700712367

GASKET

4шт.

20

700713948

SHAFT

- splined

2шт.

21

700712374

CAP

1шт.

22

700712384

PLUG

4шт.

23

700712381

BEARING

ASSEMBLY - tapered

1шт.

24

700712370

KEY

4шт.

25

700713949

SHAFT

1шт.
